Hello All,

I picked this guy up recently and am trying to find out some history/what it may have been used for. Also looking for some technical advise on putting a new cord on it. I called CTR and they were no help and do not have a historical/archives department.

Any help would be appreciated
Mike

Top

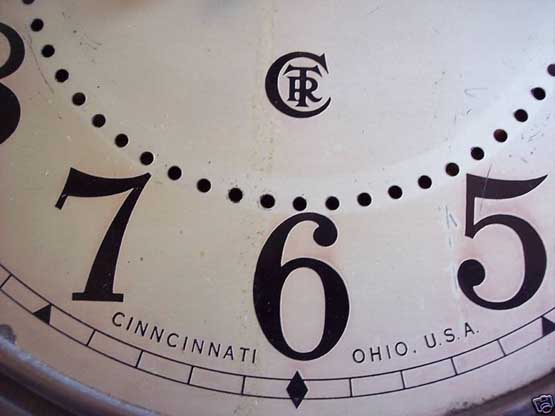

Face

Metal face.

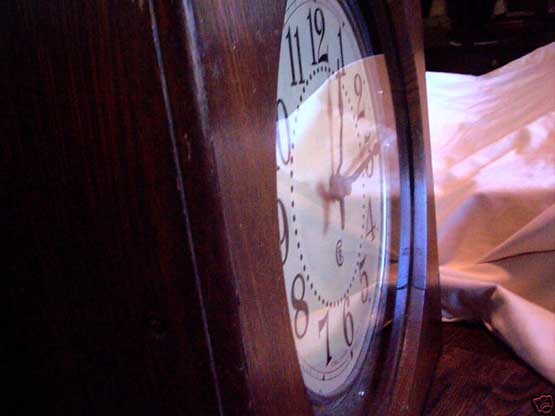

Side

Back

Michael

I am not a clock person so I may be wrong but the case looks very similar to a Western Union slave clock that was hooked to their telegraph lines so it could be set by the master clock. I think they were DC powered but again I am not a clock person, I have a couple of cases that held their clocks & while trying to find out more information on them & trying to find replacement movements I recall reading this.

Any chance of seeing the insides?

Tom

Tom,

If you look at the wood above the dial there a 2 screw that electric wires are attached to. I was affraid of unscrewing them and not putting them back on in the correct order.

It looks like the power is 110

Mike

http://www.sessions-station.co...Punctuality%20a.html

This photo (which I posted in the other thread regarding master clocks and setting watches) appears to be a much older version of yours. Notice where the wire comes into the top of the clock so that it could receive its timing signal.

Regard! Mark

Mark,

You are correct, if you look at the top of mine on the right hand side you can see the hardware for the connection.

Mike

Michael

Mark is correct, those wires are for the time signal. I will see if I can locate the information I found while researching the Western Union Clocks.

Tom

Inside 1

Inside 2

On off switch to the slave wires

Wires attached to from of clock.

Electrical into clock.

The regulator?

Wires to motor.

Movement.

Movement with a 6 inch ruler on it.

The coating on the wires is intact. How do I know which is positive and which is negative for reconnecting a power cord?

On the black box, are there any markings at the screw terminals? The black box appears to operate on 110 so I assume that is AC (alternating current), if so there is not a positive or negative on the input end. But it appears to be a transformer of some sorts, maybe converting the AC into DC, is that is the case then the output terminals will have a positive & negative terminal.

Wish I could tell you more but it hard to tell from the photo where all the wires run & exactly what they do.

Be very careful applying power to those old brittle insulated wires, you could fry something including yourself.

If there is more writing on the black box let me know.

Tom

Do you think the white cord leading in from the top is the AC line?

Also on the movement itself, is something missing where the four holes are near the center, or is that just a shadow from your flash, it looks like a square area where something was mounted.

Tom

I am torn. Should I leave it alone and just hang it on the wall not running? Or should I restore it into a working clock ie. get the motor rebuilt and replace all the old wires? What does everyone think?

Mike

Tom,

The motor is attached to the back of the movement (between case back and the back of the movement)at those 4 spots.

Yes the white cord is the ac line.

Mike

I like to have things running but that is just me. If you are not comfortable working with electricity I would suggest leave it alone or get someone that is. Wish we lived a little closer I wouldn't mind looking at it with you but if I remember those wood boxes are not light.

Tom

Tom,

I would say it is around 5 lbs. I found a place in AZ that sells replacement fabric coated wire. I think I am going to try and restore it with modern old looking wire. I am going to try to find a local person who can restore the motor and power pack (black box) for me. I just hate having a clock that cant keep time.

Mike

Mike

I sent you an email.

If anyone else wants to join in & correct me, I am not an expert in these things, I just like to tinker with stuff.

Tom

Got it Tom,

I sent you a response.

Mike

Hi Mike,
I've got information on some of these type clocks that may help.

First, does it have a electric motor in between the plates to run the gears? The ones I'm looking at have pendulums and they are battery powered and set by Western Union as Tom has indicated.
I will find some information on the pendulum type an post it here for you. It may help. Yours may have run slave clocks.

This movement looks similar to yours. Maybe a different company. This one is a "Self Winding Co". But it is battery wound,

This page is all you need to know about Western Union time setting station clocks.

Bill

Do you own any of those Western Union Clocks?

And thanks for that info.

Tom
