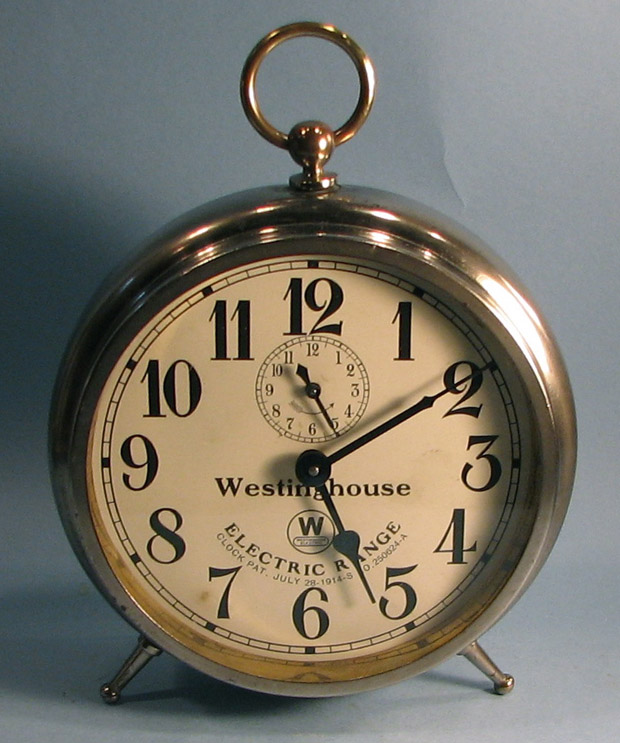

Tom SeymourMystery Pegs on Westinghouse Stove Alarm Clock
I picked this up recently at an auction. I thought it was interesting from an advertising standpoint, but it also poses a mystery.
There are two pegs coming out of the back of the case. I have no clue as to what they might be for.
any ideas?
October 12, 2005, 16:59

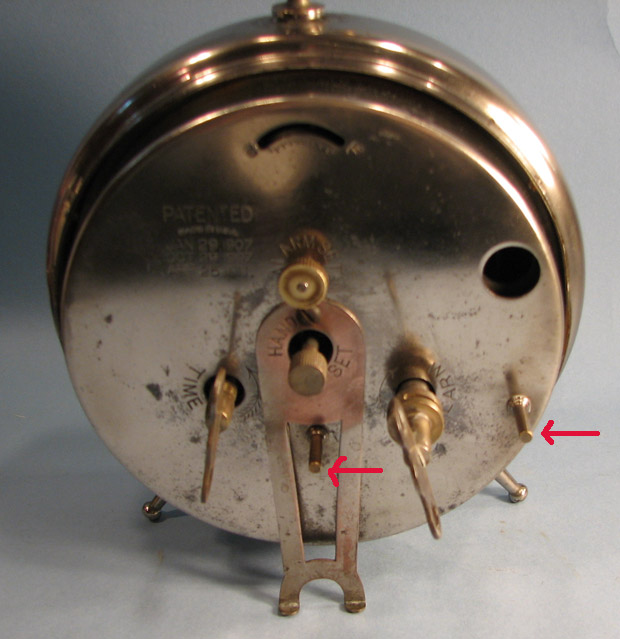

Tom SeymourThe back of the movement showing the two pegs.
October 12, 2005, 17:01

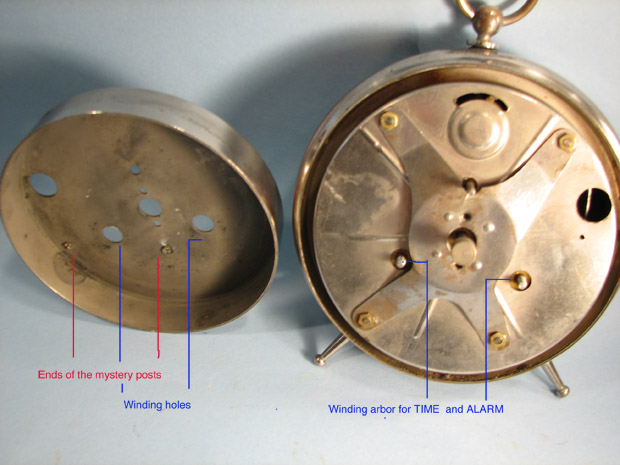

Tom SeymourWhen I took off the back, I found that the pegs connected to nothing at all.
October 13, 2005, 16:15

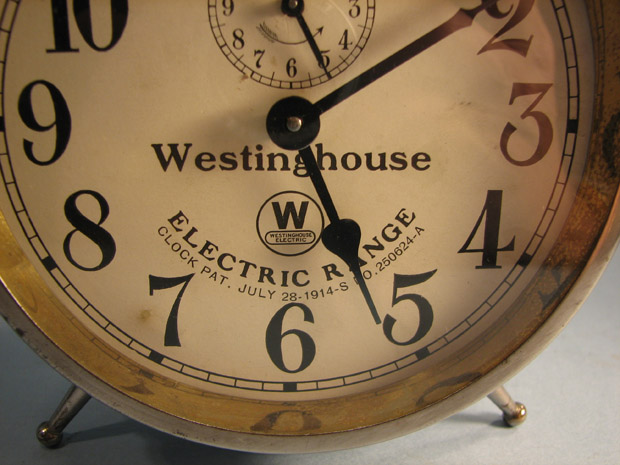

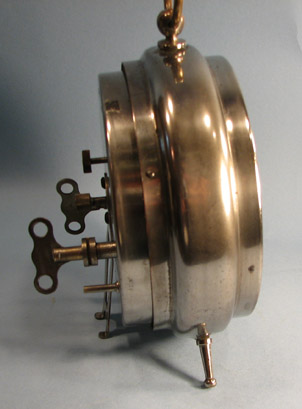

John ArrowoodThe winding keys seen in the side view look more like keys for other clocks: kitchen, mantle, etc. where the key is not attached to the movement. They seem to protrude farther than the usual alarm winders; the bulge in the middle of the alarm winder looks very strange. It might be worthwile to lookup the patent number on the dial.
October 14, 2005, 22:03
Tom SeymourJohn,
The strange "knob" on the winding key puzzled me also. I have not had any luck with the patent number on the dial. I did however find
THIS ebay item.
My guess is that a lever attached to that part of the winding arbor and turned when the alarm went off. The lever would then, I suppose, turn the range off.
October 14, 2005, 22:12
Tom Seymour HERE is an ad from 1916. Not much information, but it shows a picture of the clock on the stove.
October 15, 2005, 08:05
John ArrowoodPerhaps the lever striking the pins would shut off the alarm by stopping the unwinding of the spring; that would prevent the alarm from sounding until the spring ran down and driving the neighbors mad. I don't see an alarm shut off on the clock.
