Church Automatic Turret Lathe

This topic can be found at:

March 10, 2005, 13:11
Frank J. Menez

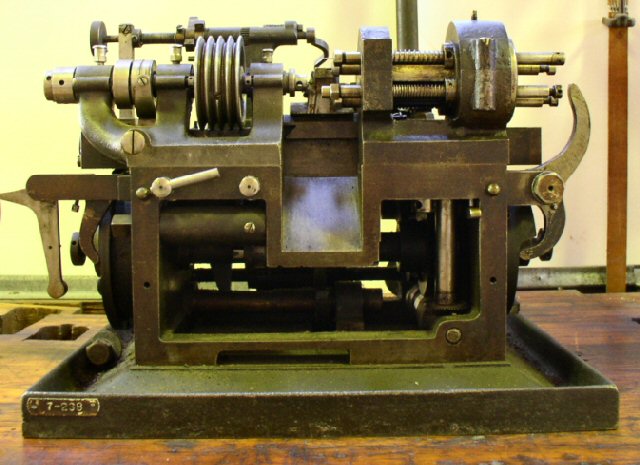

Church Automatic Turret Lathe
Church Automatic Turret Lathe-

With the use of the cross slide and four spindle turret six different operations can be done on a part before it is released from the machine and the next automatically loaded with picker from the loading plate. Some of these operations are turning, facing, drilling counter boring etc. Each loading plate is stamped with the name of the part to be made.

George Collard

Frank J Menez
Trustee CRMI
March 11, 2005, 06:53
Wayne C. Anderson
On display at the CRMI

March 11, 2005, 06:56
Wayne C. Anderson
The loading plates

March 11, 2005, 08:48
Kevin Pestor
Thanks Wayne, interesting lathe, neat piece of equipment.
Thanks for the picture.
