Tom BrownBall Waltham Diagram Needed
I was wondering if someone could point me in the direction to find either a diagram or photographs showing the winding & lever setting parts locations on a 19 Jewel ORRS Ball Waltham, I have one that I acquired totally apart & some of the parts I can not figure out how or where they attach. Are any other Waltham models similiar in parts, I have never worked on a Ball before.
Thanks for any help you can give me, I have tried searching the web & looked in what books I have but I can't locate anything.
Tom
February 01, 2008, 20:59
Tom BrownI forgot I also wanted to ask if someone could tell me what balance staff this model took & where I might locate one?
Thanks again
Tom
February 03, 2008, 22:25
Tom BrownHi Lindell

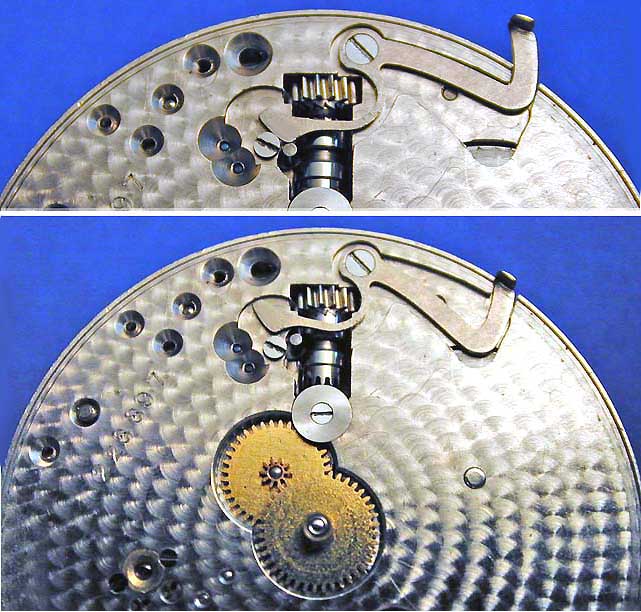

Thanks for the images & the info., if someone has a photo of the opposite side of the plate it would help some more. These hepled but I have some pieces that must go one the other side under the winding bridge.
These photos got me started but I am assuming there is some sort of spring that causes the watch to return to the winding position after the lever is returned into the watch. I have a spring lever & a small disc with a hole in the center & then a 2nd hole at out the edge of the circle. Other watches I have done I will photograph them if they are different from others I have worked on, but this one I received in parts.
Thanks again!
Tom
May 07, 2008, 17:18
Tom BrownLindell
I can't believe you were willing to take your own watch apart for me! This photo along with your earlier ones are just what I need to get this watch back together.
For anyone out there who has anything negative to say about Lindell or the 185 come talk to me. In the very small amount of time I have been a member here Lindell has not only gone out of his way to answer alot of my questions & even take his own watch apart for me but offers to mail it to me if it would help & calls me whenever he thinks he can help me. I have never found an organization that has made me feel at home & welcome as much as the 185 has. I am very proud to say I am a member of such a fine group of people.
Thanks again for everything today Lindell!
Tom
May 07, 2008, 22:12
Tom BrownLindell
That last photo did it! Just got the stem setting parts all back together & it looks like your photos & works like a charm.
