September 04, 2009, 20:36
Samie L. SmithHamilton 16 jewel airplane clock
Here is a neat item a model 37500 Hamilton Aircraft clock.
September 04, 2009, 20:36
Samie L. Smiththe back
September 04, 2009, 21:50
Tom BrownSamie
I like that! Don't know if I have ever seen a Hamilton.
Tom
September 04, 2009, 22:59
Scott A. WhitteyAloha
This Aircraft clock was standard equipment on the venerable Vought F4U-4 Corsair
September 04, 2009, 23:26
Scott A. WhitteyAloha
Here is Maj. Gregory Boyington's F4U from VMF-214.
September 05, 2009, 08:59
Samie L. SmithThese are the most complicated clock they made for the airplanes,,There is a 12 hour elapsed time clock at the bottom of the dial that runs independant of the 8 day clock.it is started by pushing the winding stem at the bottom of the clock the little orbit window will turn red push the stem again it stops and the orbit turns half white and half red push the stem again and it resets the elapsed time clock and the orbit turns white..
push the knob at the top of the clock and it starts the counter (large white sweep second hand ) for the 8 day clock push it again and it stops the counter then push again too reset it back too zero..
The civil date is set via. a red pusher by the bottom knob.
These have a 16 jewel complicated movement .
September 05, 2009, 12:10
Edward L. Parsons, Jr.Scott,
That F4U-4 Corsair is my favorite WW2 fighter. The "inverted gull wing" design was an imaginative design solution to shorten the main landing gear struts, while still providing enough height to keep the extra-large propeller from hitting carrier flight decks.
Six Browning .50 cal machine guns provided a formidable armament. The wing root air inlets gave the Corsair a distinctive sound, which led the Japanese to nickname it it "whistling death."
September 06, 2009, 19:20
Ray HallenbeckWow Scott, great pic of "Pappys" plane. And I agree with you Ed, the corsair is my favorite WW2 fighter plane. Living near the Chino "Planes of fame" airport I've seen many Corsairs flying out here and when Pappy Boyington wrote his book years ago I met him and he signed the copy I purchased from him.
Ray
September 06, 2009, 19:21
Ray HallenbeckOh forgot to add, Great clock Samie..
Ray
September 06, 2009, 21:06
Jim HesterThese are the most elaborate of the mechanical aircraft clocks and were used in many different aircraft of the day. They were made under contracts given to both Hamilton and Elgin. I seem to see more of the Hamiltons around than Elgins, but not by much. They come up for sale on Ebay regularly and usually get good prices, especially the ones that have been recently serviced and everything is in good working order.
February 23, 2014, 11:39
Robert BollHere is a 37500 Hamilton Aircraft Clock of mine...
February 23, 2014, 11:40

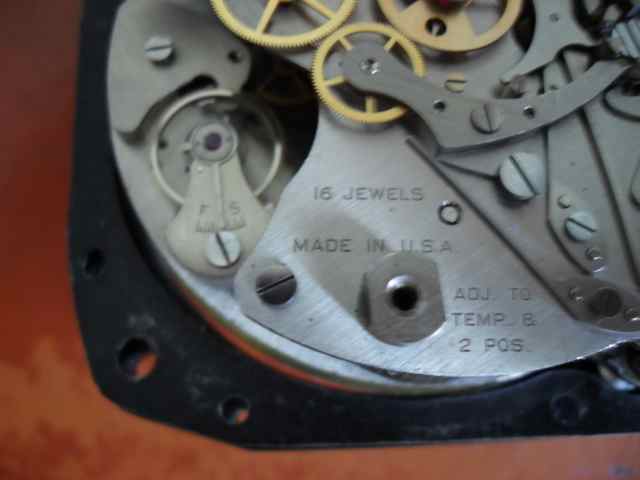

Robert BollAnother picture of the movement...
February 23, 2014, 11:44
Robert BollHere is the case back with the inscriptions...
February 23, 2014, 21:00
Jim HesterI think that technically these would be called either a Hamilton-Elgin for the ones marked Hamilton like yours, or Elgin-Hamilton for the ones marked Elgin. They were jointly made by the two companies with each company using some parts provided by the other in assembling these.
February 24, 2014, 02:50
Robert McClelland Otto Frei sells many of the parts for these Elgin-Hamilton clocks. The on-line catalog includes many exploded views, probably from the military repair manual,to illustrate the parts they are selling. Gives you a real appreciation of the complexity of these clocks.
February 24, 2014, 09:49
Robert BollThank you for all for the input this is the only one so far I have gotten my hands on..
February 24, 2014, 11:34
Samie L. SmithRobert that is a nice clock,,i have serviced several of these and they are very well made ,lots of parts but easy to work on.
