March 06, 2009, 14:06
Steve Gossard
swiss hallmarks
I know this is pretty fuzzy, but can anyone decipher these hallmarks on my old Zenith ww?
Thanks,
Steve G.
March 06, 2009, 14:07
Steve Gossard
OOps, I guess I'd better attach the picture...


March 06, 2009, 15:19
Gerald Zimmermann
Hi Steve

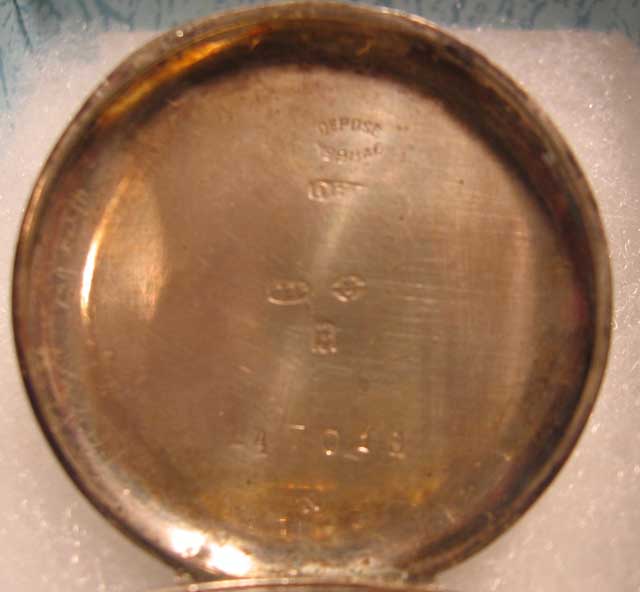

I think I've got the three in the center:

Left one: 925 = sterling silver
right: import mark for London
bottom: date letter 1931 if this is a 'q'

Please try better picture; write us the numbers below the DEPOSE on top, this should be a patent number.

Regards Gerald
March 07, 2009, 09:27
Steve Gossard
My watchmaker, Philip, has the watch right now making a stem for it. I will look at it again as soon as I get it back. Thanks a lot, Gerald!
March 07, 2009, 17:25
Steve Gossard

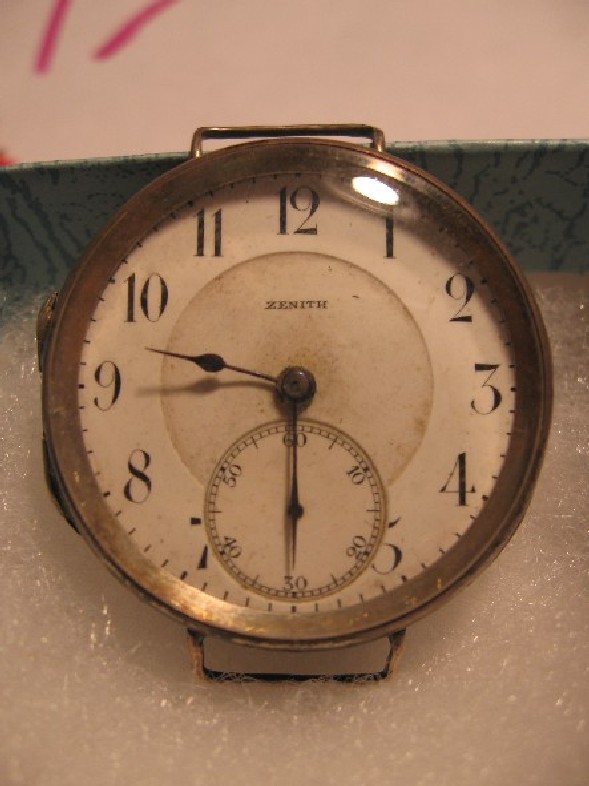

Here is the Zenith dial-obviously needs cleaning.


March 07, 2009, 17:26
Steve Gossard

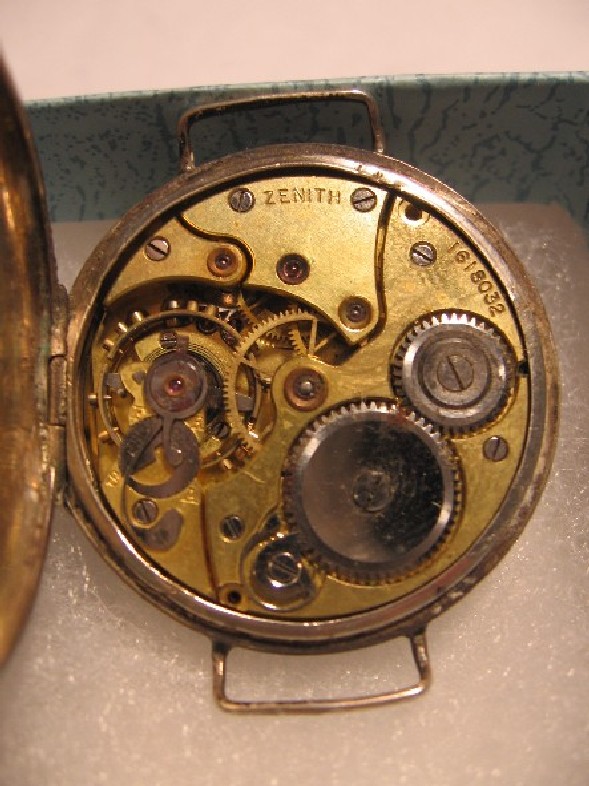

Here is the movement.


March 07, 2009, 17:27
Steve Gossard
Maybe some astute historian can figure out a date chart by comparing the serial numbers with the hallmarks on some of these swiss pieces.
March 07, 2009, 17:28
Steve Gossard
How about this one?


March 07, 2009, 17:28
Steve Gossard
The dial:


March 07, 2009, 17:29
Steve Gossard

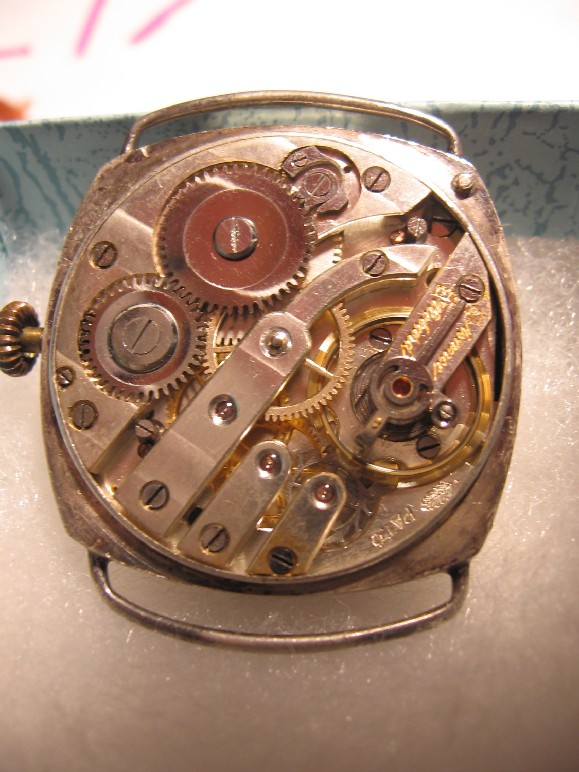

And the movement. Can anyone identify this design for me?


March 07, 2009, 17:31
Steve Gossard
What does the little fern design in the lower right signify?
March 07, 2009, 18:54
Gerald Zimmermann
Steve

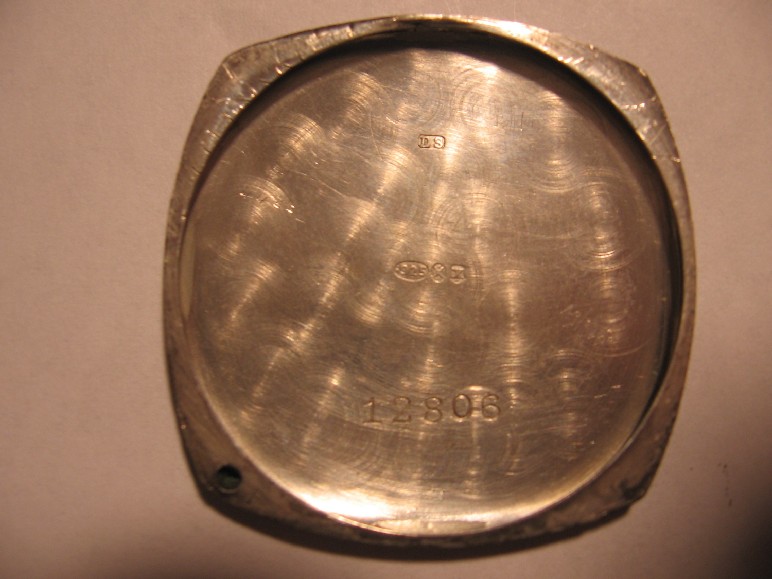

The second watch can also be dated by the three marks in the center of the case back:

.925 :sterling silver
cross,diagonal :import mark of Edinburg
third mark : date letter 1929 if 'x'

Regards Gerald
March 07, 2009, 20:03
Steve Gossard
Yes, I think it is an X, and that would be consistent with the style of watch-wire posts, etc, from that time teriod. Thanks very much!
