July 05, 2013, 23:36
Lorne Wasylishen
18-Size RRG Illinois Movement Variety Images -- YOUR HELP IS REQUESTED!
I have to type all of this out so I can get my head around it. The chronology I will leave to you.

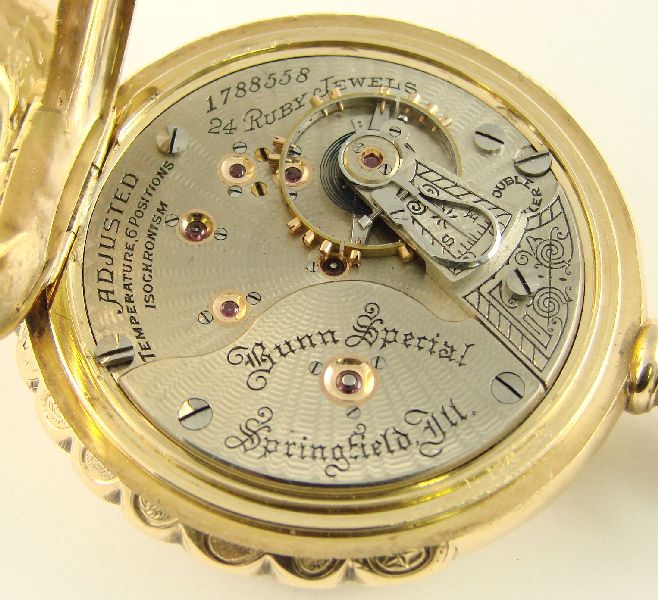

1. 24j Adjusted Temperature. 6 Positions Isochronism Double Roller


July 05, 2013, 23:38
Lorne Wasylishen

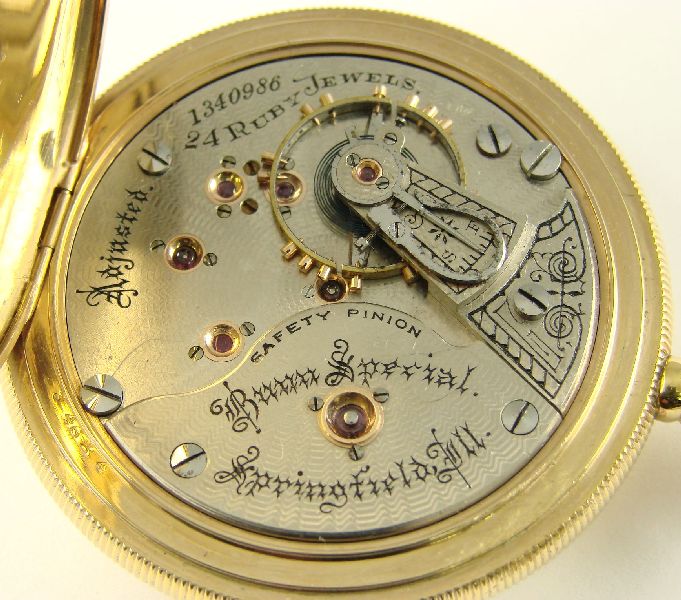

2. 24J Adjusted Safety Pinion

Ed, I found another exactly like this but the font for everything except ADJUSTED is just a bit different. what's that about?


July 05, 2013, 23:39
Lorne Wasylishen

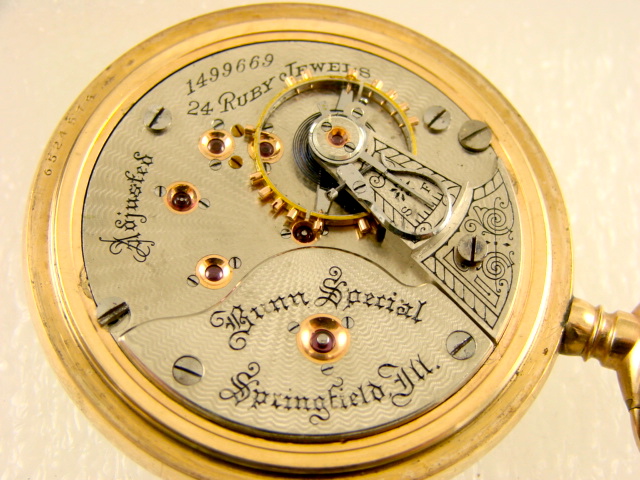

3. 24J Adjusted


July 05, 2013, 23:43
Lorne Wasylishen
4. 24J Adjusted D.R.

This is just a different image of the D.R. watch I posted earlier in this thread.


July 05, 2013, 23:50
Lorne Wasylishen
1. 26J Adjusted Temperature. 6 Positions Double Roller

Tough to read this one but as yet have not found a better image.


July 06, 2013, 00:07
Lorne Wasylishen
23. I can't stop I tell ya.


July 06, 2013, 12:38
Edward L. Parsons, Jr.
Thanks a million Lorne, I can and will use all of those pics. I just have to stake out all the varieties, and then I can start dropping them in.Smile


Best Regards,

Ed
July 06, 2013, 12:59
Lorne Wasylishen
Yes, as you get them staked out I will have more of an idea what I am looking for.

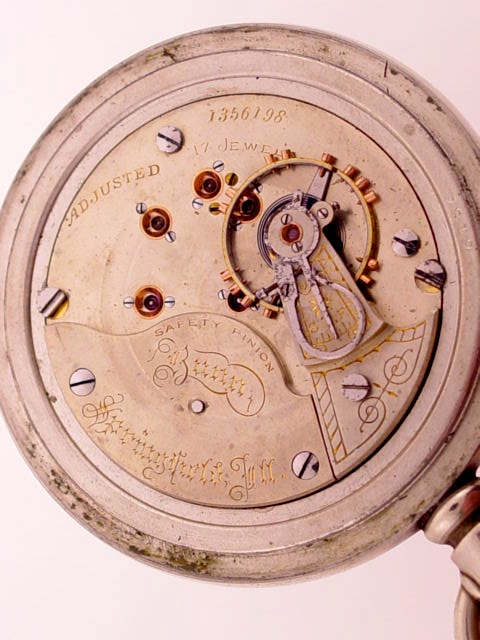

So just to be clear, in the case of my 17J Bunn. It could be marked Safety Pinion and Adjusted or just Adjusted and these would be considered variations of that variety?

I actually started looking at the 17J but was finding more 24J and ended up on that track.
July 06, 2013, 14:55
Lorne Wasylishen

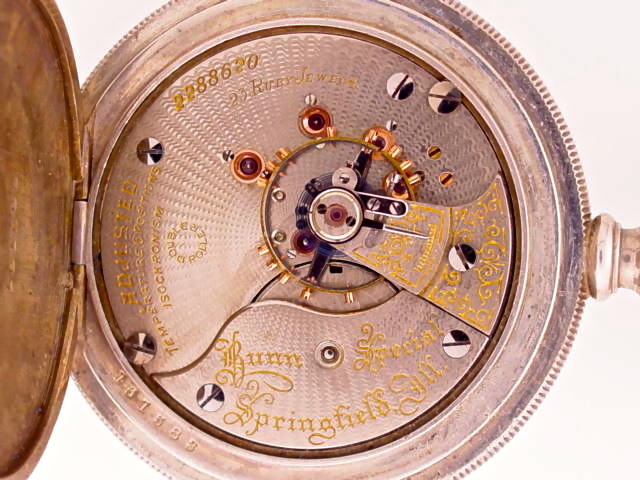

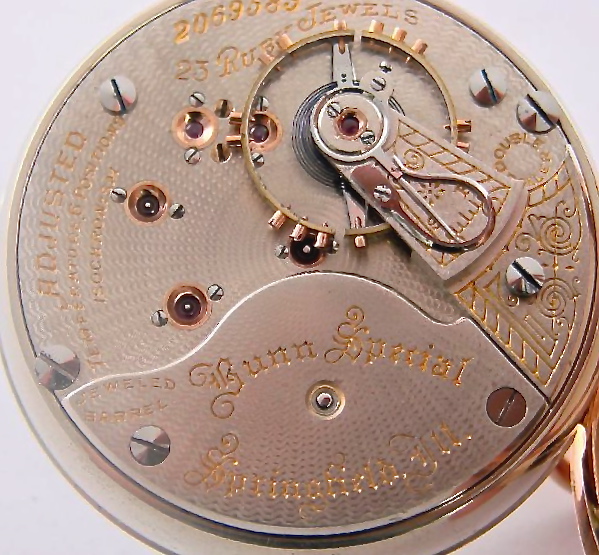

!. 23 Ruby Jewels, Adjusted Temperature. 6 Positions Isochronism

Double Roller Jewelled Barrel

Bunn Special Springfield Ill.


July 06, 2013, 15:01
Lorne Wasylishen

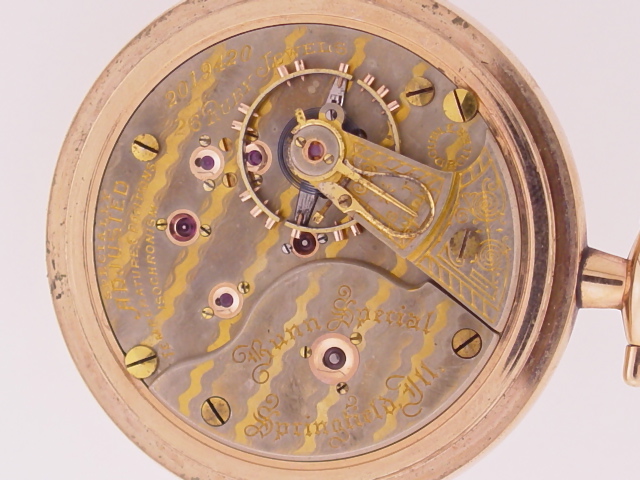

2. 23 Ruby Jewels, Adjusted Temperature. 6 Positions Isochronism

Double Roller

Bunn Special Springfield Ill.


July 06, 2013, 15:06
Lorne Wasylishen

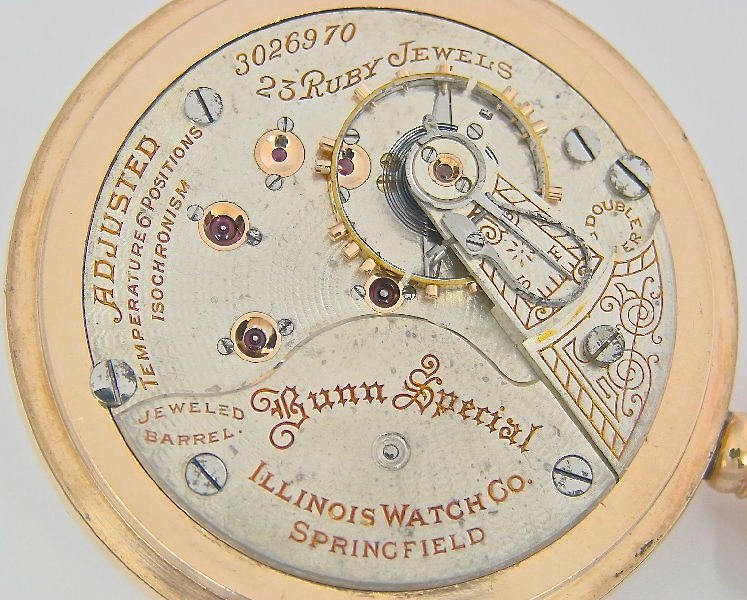

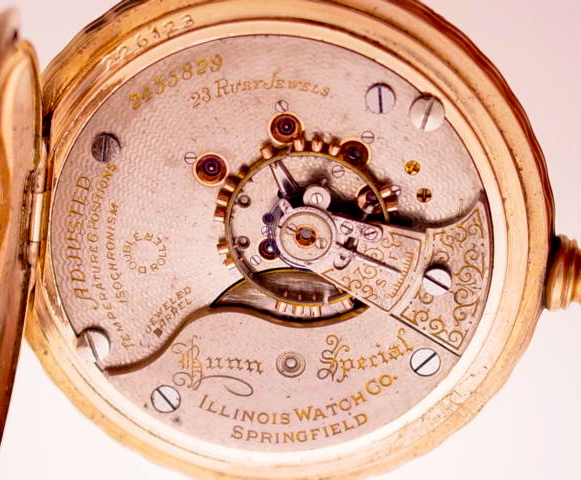

3. 23 Ruby Jewels, Adjusted Temperature. 6 Positions Isochronism

Double Roller Jewelled Barrel

Bunn Special Illinois Watch Co. Springfield


July 06, 2013, 15:13
Lorne Wasylishen
4. 23 Ruby Jewels,Adjusted Temperature. 6 Positions Isochronism

Double Roller Jeweled Barrel

Bunn Special Illinois Watch Co. Springfield


July 06, 2013, 15:14
Lorne Wasylishen
Leave a space just in case.

I was checking things and realized two of the 23J are Hunting movements, I'll keep looking.
July 06, 2013, 21:03
Edward L. Parsons, Jr.
Lorne,

Yes, in Variety 1 of the 24-jewel Bunn Special for instance, the primary marking has SAFETY PINION, and then that was dropped around movement no. = about 1.5 million, so it's kind of a sub-variety.

That D.R.-marked 24-jewel Bunn Special you found qualifies as a full-fledged variety in its own right, just as that same marking has its own variety in the 21-jewel Bunn Specials.

There are probably D.R.-marked 23-jewel Bunn Specials as well. But in 1985, Bill Meggers didn't know they existed, so they aren't in the book.


Best Regards,

Ed
July 07, 2013, 12:09
Lorne Wasylishen
Ed, I am going to post what I have up till now and any gaps will have to be filled in later.

Can you recheck the 24J variety 1A, it just says Adjusted on the movement yet you show under Movements Marked: Temperature, 6 Positions, Isochronism.
July 07, 2013, 12:12
Lorne Wasylishen

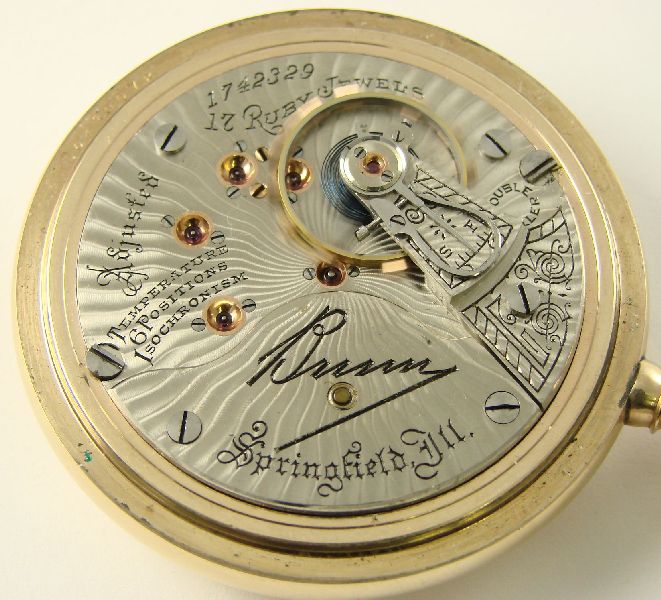

1. 17J variety 1


July 07, 2013, 12:14
Lorne Wasylishen
2. 17J Variety 3


July 07, 2013, 12:17
Lorne Wasylishen
3. I am not sure where this fits in so I'll call it Variety 3A

Is it the "Flag" variation of variety 3?


July 07, 2013, 12:19
Lorne Wasylishen

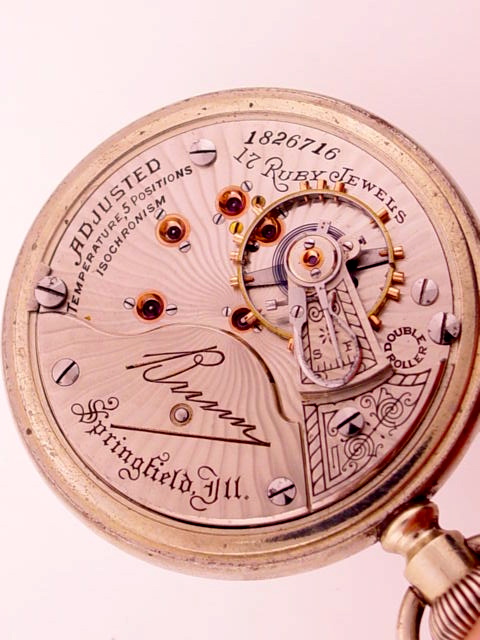

4. 17J Variety 4


July 07, 2013, 12:21
Lorne Wasylishen
5. 17J Variety 5.

I am still looking for 5 and 6 so will leave spaces her for them.
July 07, 2013, 12:22
Lorne Wasylishen
6. 17J Variety 6
July 07, 2013, 12:24
Lorne Wasylishen

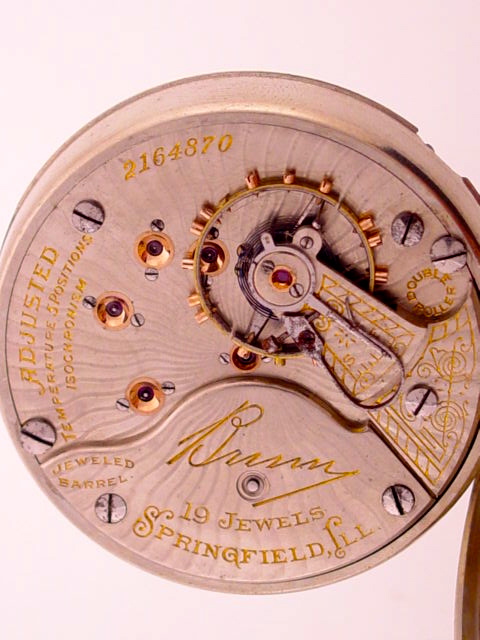

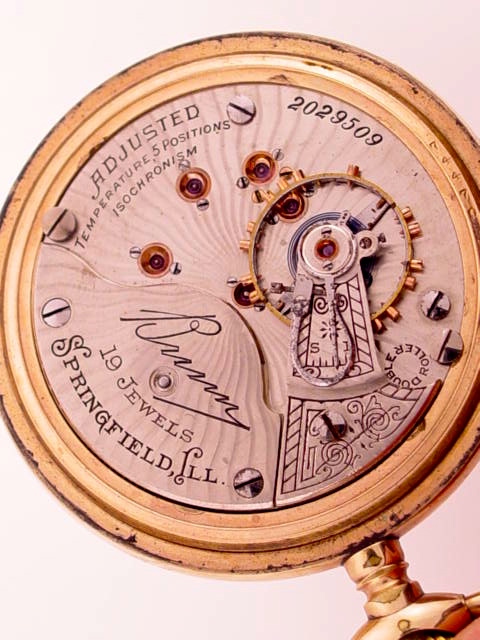

7. 19J Variety 1
July 07, 2013, 12:24
Lorne Wasylishen
8. 19J Variety 2


July 07, 2013, 12:26
Lorne Wasylishen

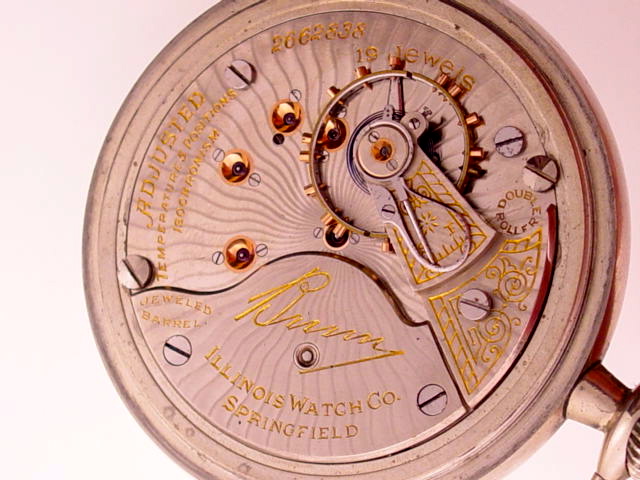

9. 19J Variety 3


July 07, 2013, 12:27
Lorne Wasylishen
10. 19J Variety 4


July 07, 2013, 12:33
Lorne Wasylishen

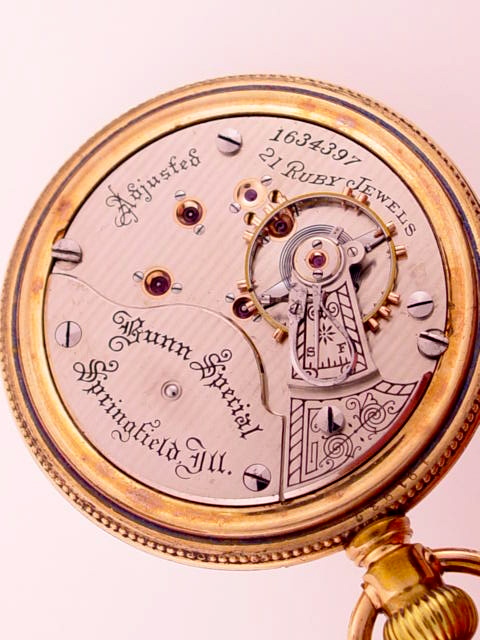

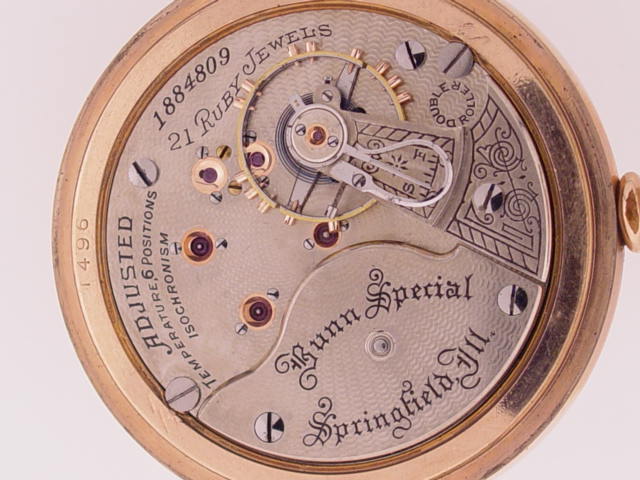

11. 21j Variety 1


July 07, 2013, 12:39
Lorne Wasylishen

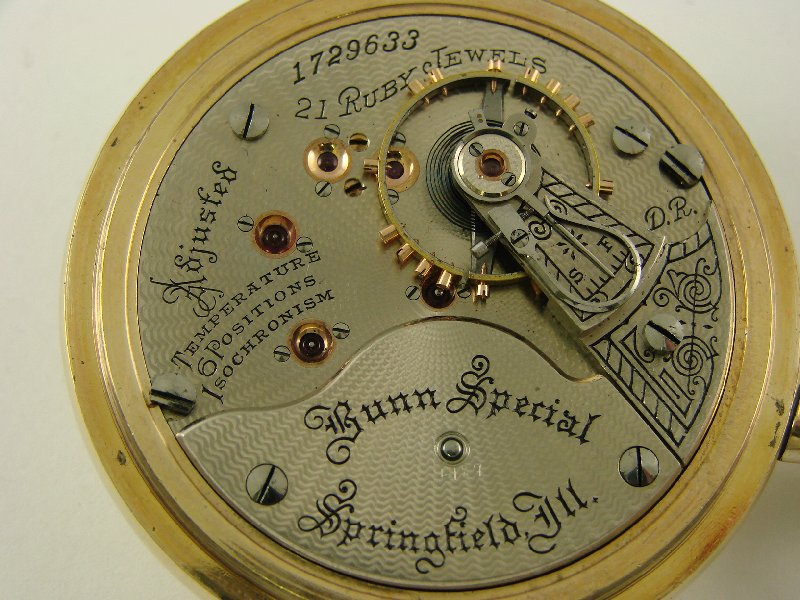

12. 21J Variety 2 or 3??

I will stop here as this one is in the serial number range for your Variety 2 yet has the markings for your Variety 3


July 07, 2013, 13:03
Lorne Wasylishen

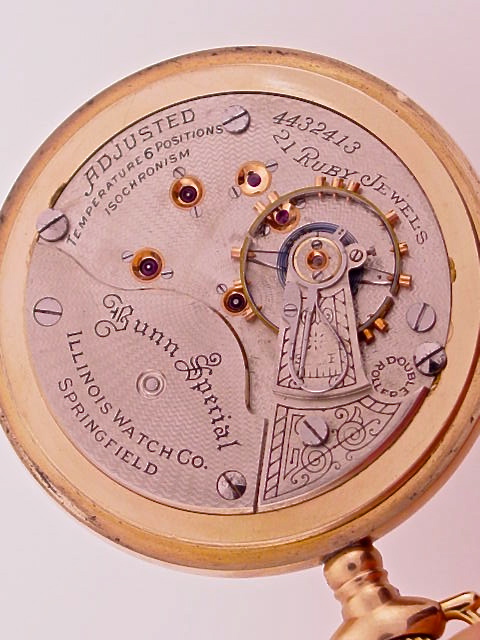

13. 21J Variety 3
July 07, 2013, 13:04
Lorne Wasylishen

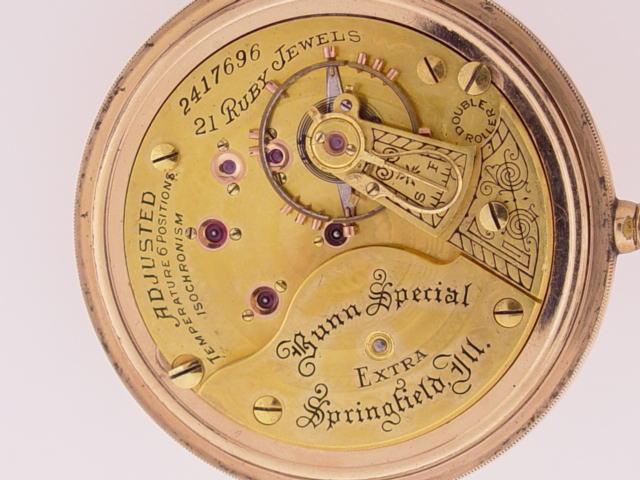

14. 21J Variety 4


July 07, 2013, 13:05
Lorne Wasylishen
15. 21J Variety 5


July 07, 2013, 13:05
Lorne Wasylishen
16. 21J Variety 6


July 07, 2013, 13:06
Lorne Wasylishen
17. 21J Variety 7
July 07, 2013, 13:06
Lorne Wasylishen
18. 21J Variety 8
