Using the K&D Mainspring Winder

This topic can be found at:
https://ihc185.infopop.cc/eve/forums/a/tpc/f/7576090143/m/3446070753

June 06, 2003, 11:41
John D. Duvall
Using the K&D Mainspring Winder
Please let me know if you have problems viewing this. We are trying to support as many platforms and browsers as possible. If you experience problems viewing this presentation, please post a reply or email me with the particulars.

Like many of you, I connect to the internet via dial-up so please be patient as the slideshow loads.

K&D Winder Tutorial

John D. Duvall
Proud IHC Member 192
June 06, 2003, 12:25
Lindell V. Riddle
Absolutely Amazing!

IHC 185... "We Are Limited Only By Our Imagination"


Thanks a million John!

Lindell

Wink
June 06, 2003, 15:23
Ed Ueberall
John,
What a great job! Big Grin

Ed Ueberall
NAWCC #49688
IHC #34
June 06, 2003, 22:42
Mike Miller
Wonderful John!

Thanks for taking the time to do that. I learned something. Namely, to back out the arbor and reset the collar before plunging the spring into the barrel. I haven't done that and wondered why the t-ends of my mainsprings always seem to spin out of the hole in the barrel. I seldom used my 128 because I thought it didn't work properly. Now I know, it was operator error!!!

In using a 126 (robbins type) this isn't an issue since you have to remove the arbor to put the barrel over the spring. You have made the 128 a useful tool for me! Thank you again!

Mike Miller
NAWCC Member# 154831
NAWCC-IHC Charter Member# 27
June 06, 2003, 23:30
Tom Seymour
Fantastic John!!! Thanks!!

Tom Seymour
NAWCC #41293
IHC #104
IHC Exec.V.P.
June 06, 2003, 23:46
John D. Duvall
Lindell, Wayne, Ed, John, Mike & Tom. Thank you for your kind and generous comments.

I take comfort with the overwhelming encouragement and support received from so many members and guests. Chapter 185 is only six months young and look how far we've come. I'm looking forward to the next six months and beyond with excited optimism.

Again, thank you all for your support!

John D. Duvall
IHC Happy Camper 192
IHC185 Watch Repair Moderator
June 07, 2003, 13:24
Ralph Rehner
John,
A lesson that tells it all. Worth making a wall poster out of for those times when we mysteriously forget our lessons and
things start flying around the room.
Look forward to seeing more of your educational presentations.

Ralph Rehner, "The Clock Pup" and Longines Watch Guy


June 07, 2003, 13:52
Frank Juchniewicz
Thanks for another great "Helping Hand" tutorial

Frank Juchniewicz
June 10, 2003, 05:33
Brian C.
John, what a fantastic job. I think the slide show idea is the best one I've seen in years. Even though I've been using mainspring winders for years, I really enjoyed this presentation.
Keep up the great work
Brian C.

pwpartsetc@webtv.net
June 10, 2003, 11:06
Jim Cope
...thanks John!...excellent presentation...found I had not been using my K&D spring winder to it's best advantage...kudos to you...sincerely, Jim C
October 23, 2005, 17:29
John D. Duvall
Apparently, I received an extra collar with my winding arbors and the only use I could find for it was to secure the handle in both directions. Also, my arbors have handles that are a little longer than previous versions. Anyway, the use of two collars will help prevent damaging the mainspring while winding. It is also important to use the correct diameter winding arbor so that the inner coil of the mainspring is not damaged. I'm happy the tutorial helped!
February 12, 2012, 16:04
Dave Turner
Thanks John!
I just received this K&D 128 in some tools I bought. This tutorial is exactly what I was looking for. Good Job!! I haven't studied the sizes yet, but I assume you can wind any spring from a small wristwatch to a pocket watch?


Dave Turner
March 08, 2012, 02:11
John D. Duvall
Hi Dave,

Thanks! Wow it's been years since I touched a watch but I believe you can use it for at least 0 size and up.

Regards,

John D.
March 08, 2012, 23:40
Ray Hallenbeck
John,
Great to see you posting here again. Thanks for all you did in the helping hands tutorials as they have helped me tremendously.
March 08, 2012, 23:42
Tom Brown
I 2nd Ray's statement!
Tom
March 09, 2012, 09:03
Dave Turner
Yes sir! Some of the best information on the net for new guys learning the watch business.
Dave


Dave Turner
July 12, 2012, 15:20
Dave Turner
Problem using the K&D mainspring winder
I'm using K&D Winder as described in John Duval's tutorial, and everything works slick until I try to transfer the spring from the winder barrel to the mainspring barrel.
According to the instruction I should be able to push the spring into the barrel with my fingers. This is not working for me. In fact I can't move the spring even with a lot of pressure.
Wonder what I'm doing wrong, or if my winder barrel is defective.
Anybody ever run into this problem?




Dave Turner
July 12, 2012, 15:49
Dave Turner

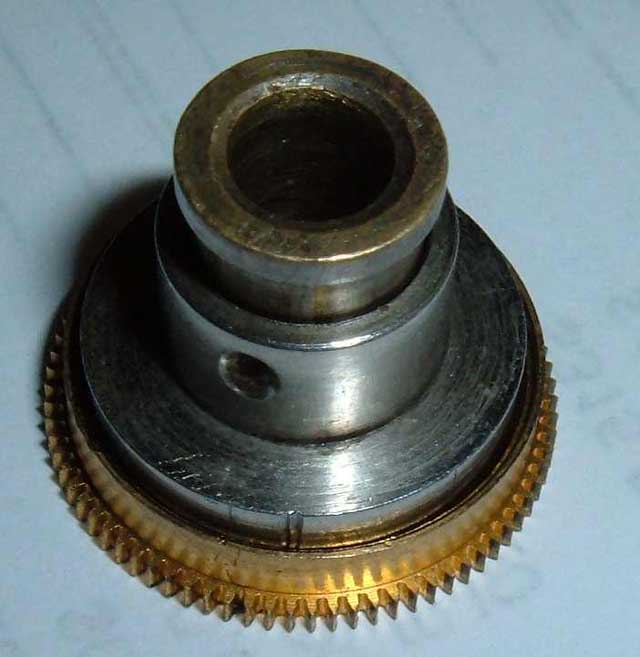

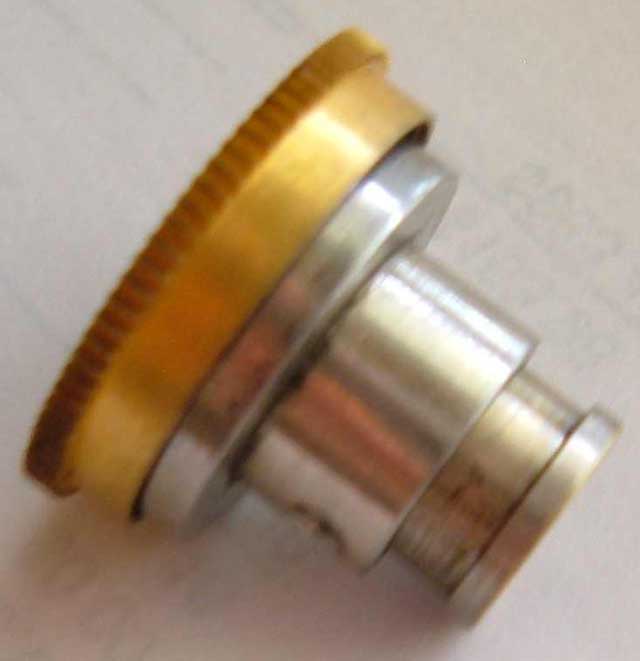

2nd picture




Dave Turner
July 13, 2012, 06:48
Chris Abell
Dave,
Are you using the other half of the winder tool do you have a photo of your set, there normally is a tube about 3” long and a knob on the end that presses the center of yours out.
Also is your mainspring and tool clean? Sometime lightly lube the wall of the tool prior.


www.Abellwatchmakers.com
July 13, 2012, 08:11
Dave Turner
Thanks for the help Chris,
I think my set is complete but I'm not sure about the tube you refer to.
I've inspected everything to be sure it's clean and moving free and easy.

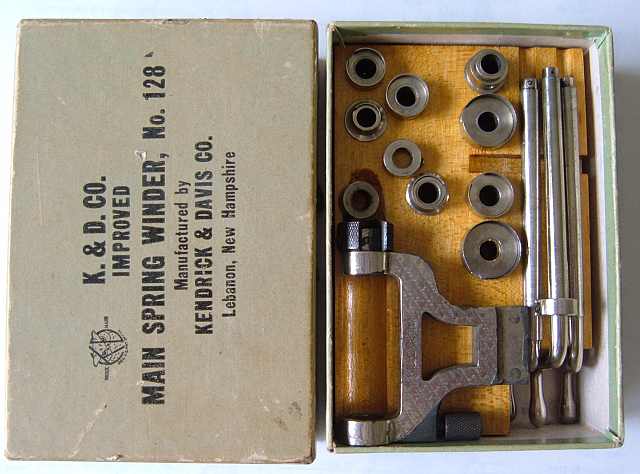

Here's a picture:




Dave Turner
July 13, 2012, 09:04
Chris Abell
I dont have this set to be able to photo it in use, maybe someone else can post a photo??
if I remeber correctly the loaded, "spring loader" should be still in the machine locked in with knurled knob into the locating hole and you should press/slide the crank to force out spring.


www.Abellwatchmakers.com
February 01, 2013, 16:15
Dan Carter
I have this winder tool (not nearly as pretty). Like Chris said I keep the "spring barrel" (one transferring from) in the tool base. Then I gently take out the winding arbor and slide the back of the spring barrel forward with the mainspring barrel in front. HOLD THESE TOGETHER unless you want to see how messed up a mainspring can get. The base holds the collar of the spring barrel in place allowing you to slide the mainspring into the mainspring barrel. You are not really pressing it in so much as sliding the entire unit forward. I have noticed this happen in any arrangement in which the spring barrel bottoms out inside the mainspring barrel. The reason it is not working for you is that you are basically squeezing mainspring barrel and spring barrel together and not extracting / sliding the mainspring from the spring barrel into the mainspring barrel. The hardest part for me when doing this (since the spring barrel is much smaller than the mainspring barrel is that the mainspring tends to uncoil a turn inside the mainspring I have to try different things to get it set correctly.

I have had one type of spring go in easier than others and that is because the bottom of the spring barrel bottomed out on the inner lip of the mainspring barrel (where the barrel cap would seat flush, so the spring barrel is just inside the mainspring barrel). In that case I could push on the back of the spring barrel with my thumb and use pressure with my index finger and the mainspring transfers smoothly into the mainspring barrel. In this case I was squeezing the two pieces together rather than sliding them. It usually worked better in aligning the mainspring tab to the slot as well.

Dan
