May 26, 2005, 00:20
Jerry Treiman
Waltham's Riverside Grade

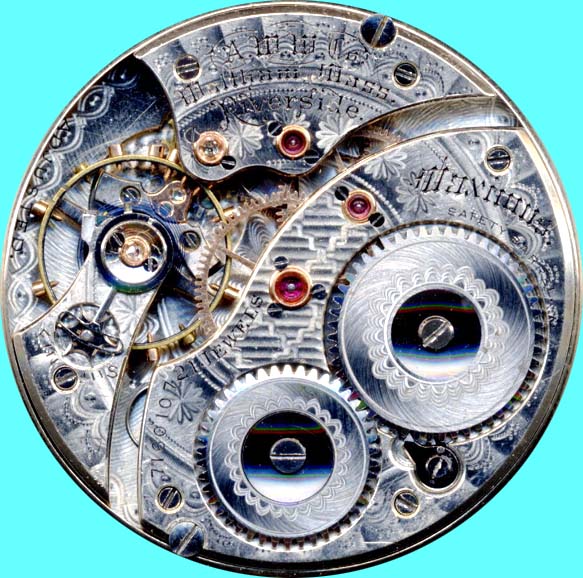

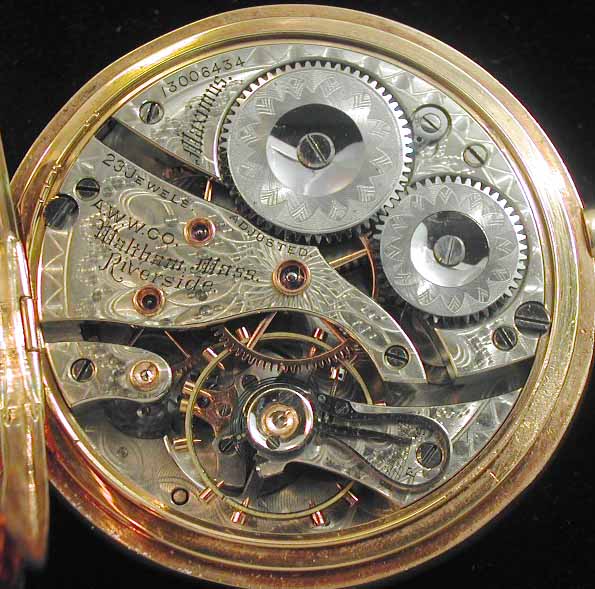

And the 1899 model Riverside Maximus. This one is lever set and railroad approved (many are pendant set).


May 26, 2005, 01:30
Phil Dellinger
This 23 jewel Maximus is one very nice looking watch Jerry!! Cool
May 26, 2005, 02:37
Jerry Treiman
It is even better in hand. It is very difficult to capture the full beauty of the Riverside Maximus. When I post the 12-size you will see another nice example.
May 28, 2005, 04:18
Jerry Treiman
Now let's slide down to 14-size. The first 14 size Riverside (that I am aware of) was the 1874 model, which came in two plate styles. This spectacular example (from an eBay auction) is the nicest I have ever seen. The unusually fine damasceening must have been for a special order.


May 28, 2005, 04:19
Jerry Treiman

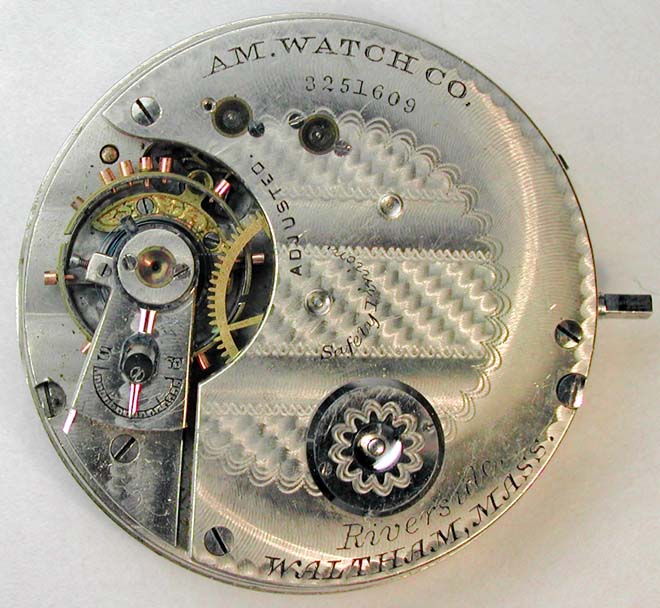

This image shows the second plate pattern used on the 1874 model 14-size Riverside (image also snagged from an eBay auction).


May 28, 2005, 04:28
Jerry Treiman

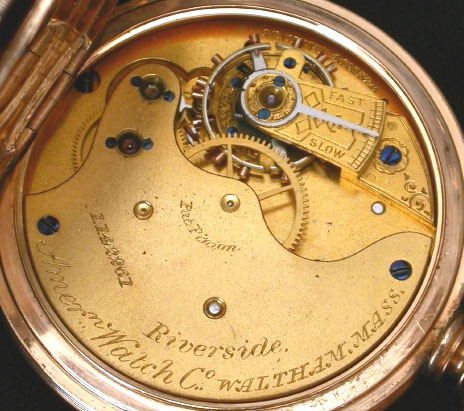

Here is an 1884 model Riverside.


May 28, 2005, 04:34
Jerry Treiman
Here is the 1895 model 14-size Riverside. This model is derived from the 1888-model 16 size movement.


May 28, 2005, 04:37
Jerry Treiman
And here is the considerably thinner 1897 model 14-size (based on the 1894 model 12-size movement). ("borrowed" image replaced on 10/23/05 with one of my own).


May 28, 2005, 14:05
Jerry Treiman
I have two more to round out the 14-size Riversides before we finish off with the 6, 8 and 12-size. This is the Colonial Series Riverside, with a 14-size dial and front plate (like the 1897 model above) but the back plates are standard 12-size. The hunters (scarce) used this 3/4-plate configuration whereas the open-face models mostly used the semi-bridge pattern.


May 28, 2005, 14:07
Jerry Treiman

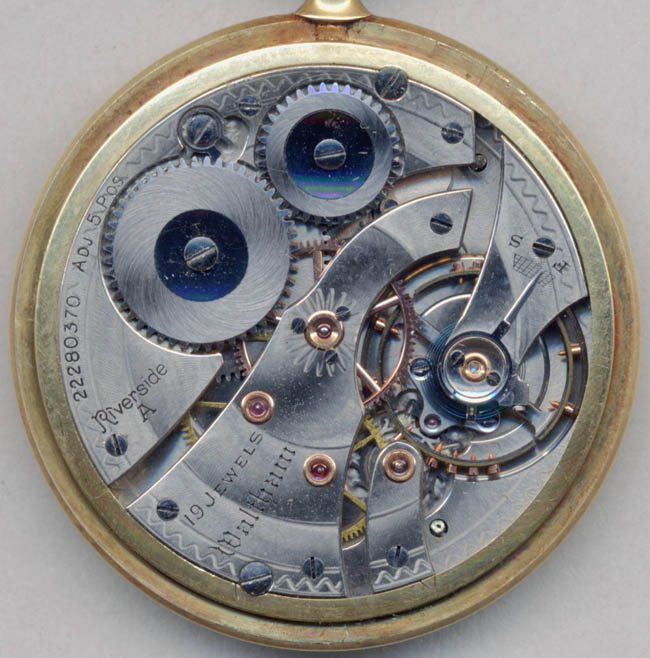

And the last 14-size is the Colonial-A, made only in Riverside or Maximus (not Riverside Maximus) grades. This example was up-jeweled at the factory from the original 19 jewels.


May 28, 2005, 14:53
Dave Coatsworth
Hi Jerry,

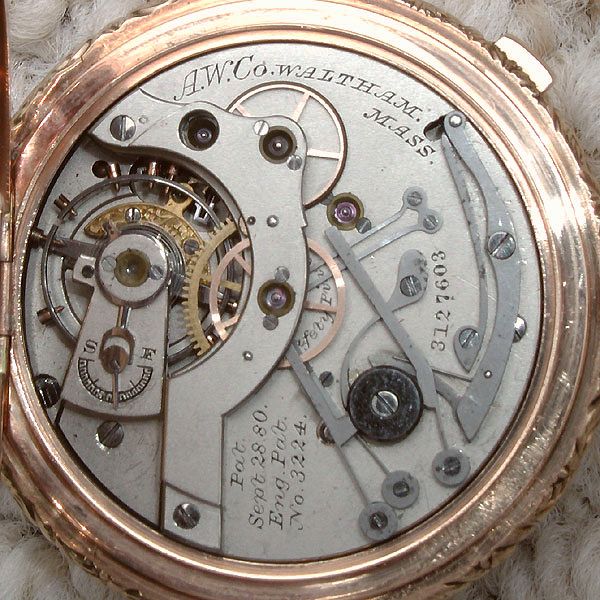

Would you consider this chronograph to be part of the 14 size Riverside family? I've heard it referred to as a "Riverside Chronograph". It's based on the 1874 model, right?


May 28, 2005, 15:52
Jerry Treiman
Dave, your chronograph is listed as a Riverside grade in the original handwritten records. The "gray book" tells us that it is an 1884 model movement. Thanks for contibuting this great piece to the gallery.
May 28, 2005, 18:25
Jerry Treiman

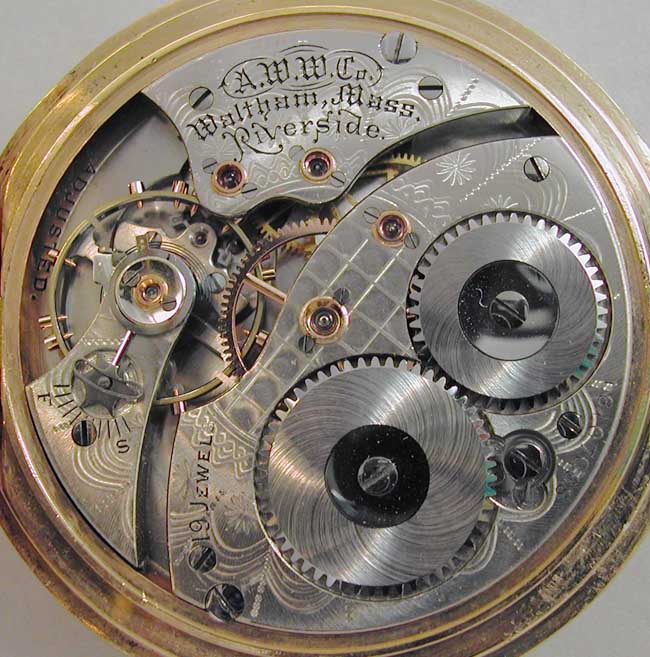

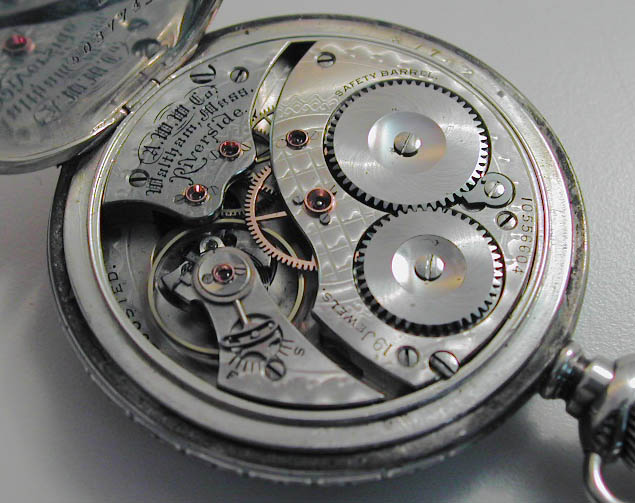

Waltham made their 1894-model 12-size Riverside in two patterns. Their first style has a split 3/4-plate layout and originally (starting with serial number 7,073,001) was made with 17-jewels but they shortly began including a capped escape wheel for 19 jewels, as this example.


May 28, 2005, 18:27
Jerry Treiman
Here is one of the nicely damasceened early 3/4-plate Riverside Maximus movements. Neither the Riverside or Riverside Maximus yet had a jeweled main wheel.


May 28, 2005, 18:28
Jerry Treiman

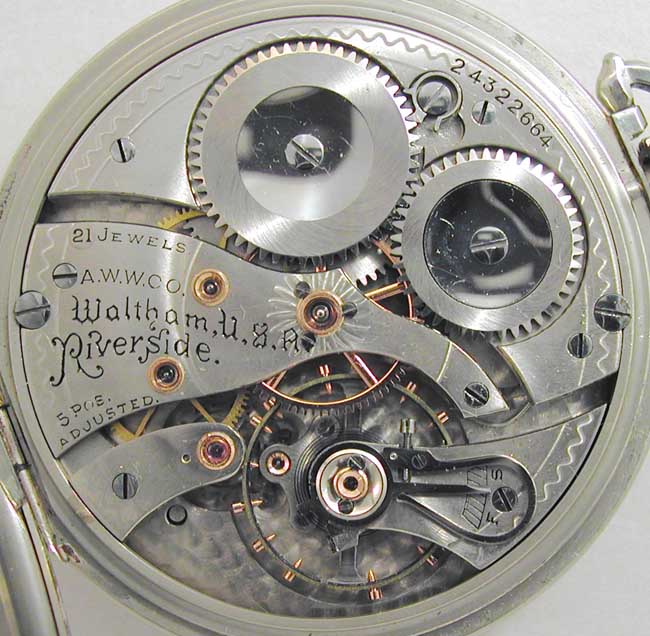

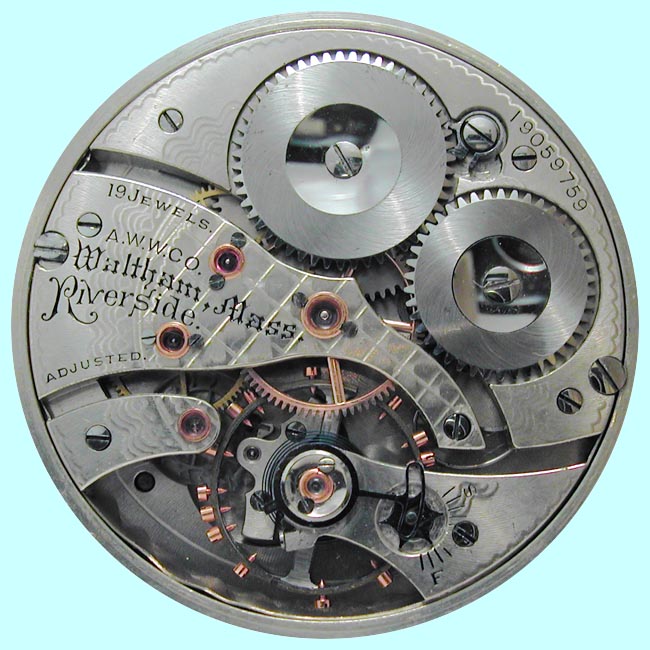

A little after 10,500,000 Waltham began using a semi-bridge plate layout for their higher-grade movements and moved the 18th and 19th jewels to the mainwheel (at the mainspring).


May 29, 2005, 03:32
Jerry Treiman

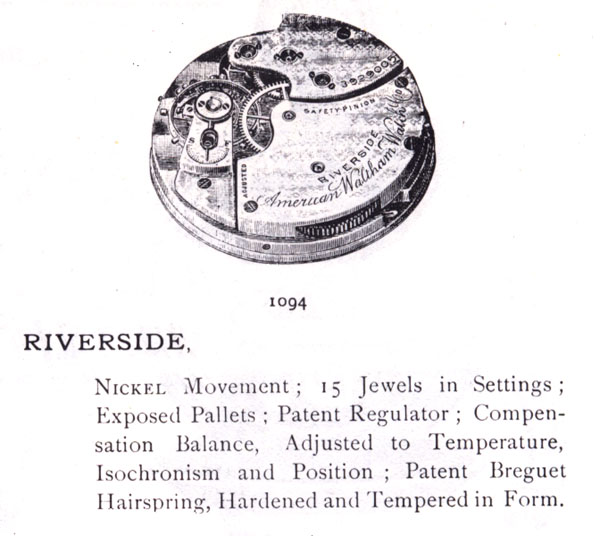

While doing a bit of research this evening I found another 14-size Riverside that I missed. This is the second plate pattern used for the 1884 model -- a split 3/4-plate. All I have at the moment is a cut from Waltham's 1890 factory catalog (from a Roy Ehrhardt compilation).


May 29, 2005, 17:31
Jerry Treiman
This is the 10-size Colonial-A Riverside. The parts are the same as the 14-A, just the plates are smaller.


May 29, 2005, 17:33
Jerry Treiman
This Colonial B (1924 Colonial) is another example of a movement that was up-jeweled at the factory (note the round plug that is re-engraved "21").


May 29, 2005, 17:36
Jerry Treiman
I am really weak on the 8 and 6-size Riversides. This is the 1873 model. Note that it is only a 7-jewel movement, but has gold timing screws on the balance.


May 30, 2005, 18:46
Mark T. Lee
Jerry;
The array of photographs of various Riverside mechanisms is truly the stuff of fantasies. I, for one, appreciate the efforts that you and others have made and wish to thank you all.

There are, however, two points for which I need clarification. The first regards case materials. At least one photograph reflects the movement as housed in a silver-colored metal. Is this silver, white gold or platinum? The second question concerns the designation “Colonial”. The Massachusetts Bay Colony celebrated its bicentennial in 1891; does that indicate a special feature of the mechanism? If not, just what does the term “Colonial” designate? Thanks.


- Mark Lee
May 30, 2005, 20:11
Jerry Treiman
Mark - let me know which movement you are looking at and I will tell you what the case is. Regarding "Colonial" - the Waltham Colonial watches, in all of their progressive development, were an effort to produce a watch that was either in reality thinner than other dress watches, or at least gave that appearance. The term was first used on their Colonial Series, introduced around 1907-09 which had an oversize (14-size) dial plate giving this otherwise 12-size watch the illusion (by virtue of its proportions) of being thinner.
May 31, 2005, 18:50
Mark T. Lee
Jerry;
Thanks! So, “Colonial” is thin or thin appearing. Hmm, I will stick to the Opera watch if I want thin (also if I can afford one). The case materials that I questioned were on these mechanisms:

18s 1892 model 1888,
14s Colonial A,
12s 1894 (photos 1 and 3),
10s Colonial B model 1924, and
1s serial no. 3321657.

Of course, I will not swear that all of these have silver-colored cases – it is only that they appear so in the photographs.

Also is the 1898 "jewel series" 6/0 in the cushion case a late conversion watch?


- Mark Lee
