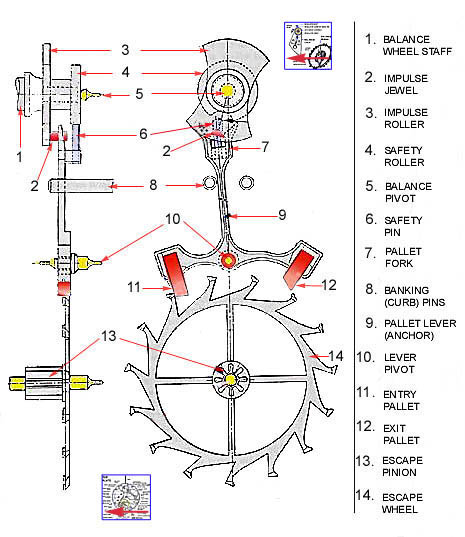

Here are some of the drawings of an Omega. I am looking for some of the engineering drawings for other watdches. I have one of an Elgin up/dn but I have to scan it first.
Harry Brunner
December 12, 2003, 17:08
Harry Brunner

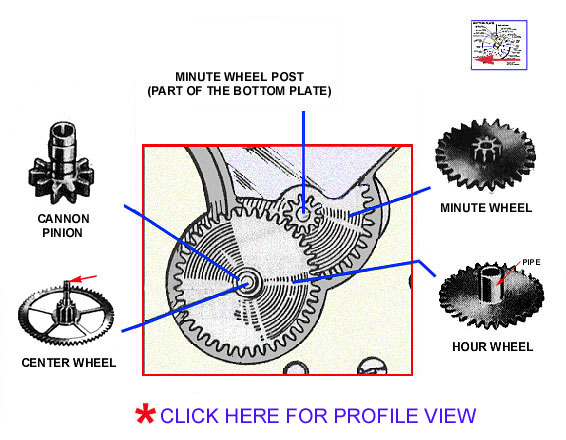

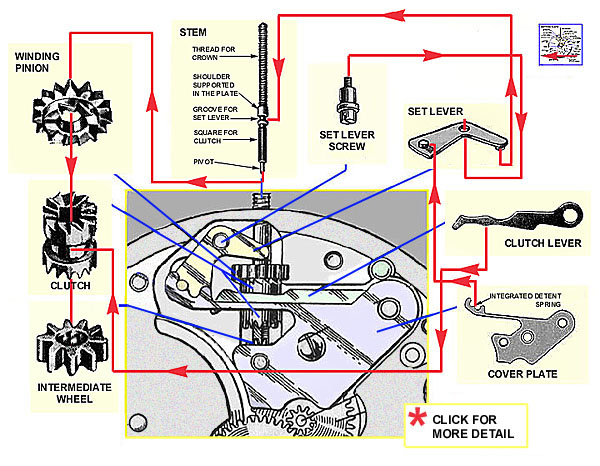

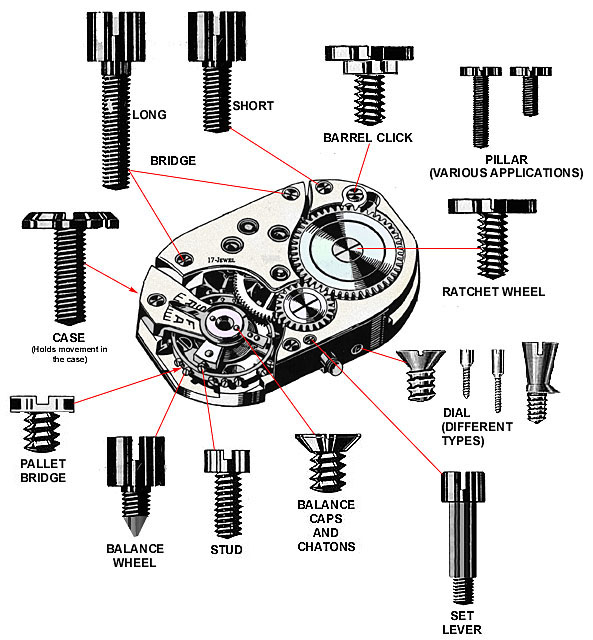

more
Harry Brunner
December 12, 2003, 17:10
Harry Brunner
Is there and way to post more then one file?
Harry Brunner
December 12, 2003, 17:11
Harry Brunner

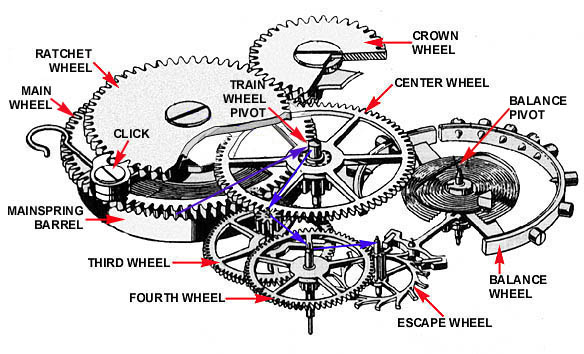

Geartrain
Harry Brunner
December 12, 2003, 17:15
Harry Brunner
I have the top and bottom plates, balance and barrel details if you want me to post them.
