Church Upsetting Lathe- Patened 1892

This topic can be found at:
https://ihc185.infopop.cc/eve/forums/a/tpc/f/5146029761/m/1541041811

March 14, 2005, 12:33
Frank J. Menez
Church Upsetting Lathe- Patened 1892
This ingenious machine was made to counterbore two in line holes on a part at the same time and always be perfectly concentric with each other. Notice boring bar that is fed through the headstock to operate on back of part held in collet, while bar in tail stock does the work on the other side, Much jeweling work and jewel settings were made on this machine.


George Collard

Frank Menez
Trustee CRMI
March 14, 2005, 21:13
Wayne C. Anderson

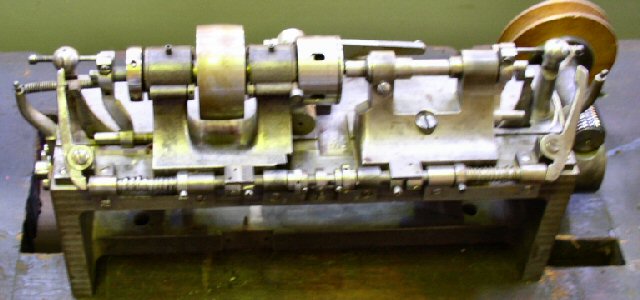

On display at the CRMI.


March 14, 2005, 21:14
Wayne C. Anderson

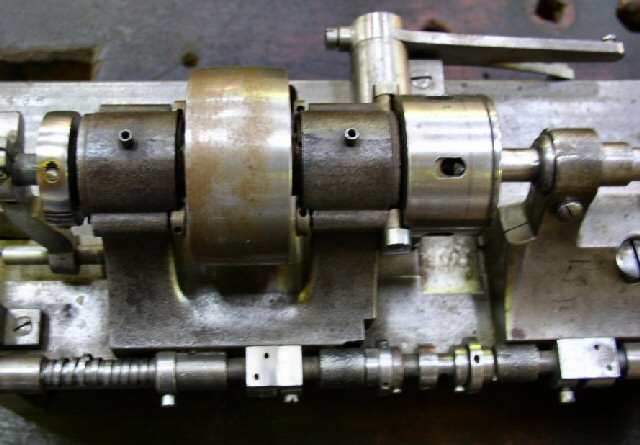

close up view.
