Internet Horology Club 185
Help identifying kw watch

This topic can be found at:
https://ihc185.infopop.cc/eve/forums/a/tpc/f/2291010082/m/3171047033

December 24, 2008, 22:30
Bill Manders
Help identifying kw watch
Hi all,
Need some help to identify this watch, and the silver marks, to date it.
Thanks,
Bill

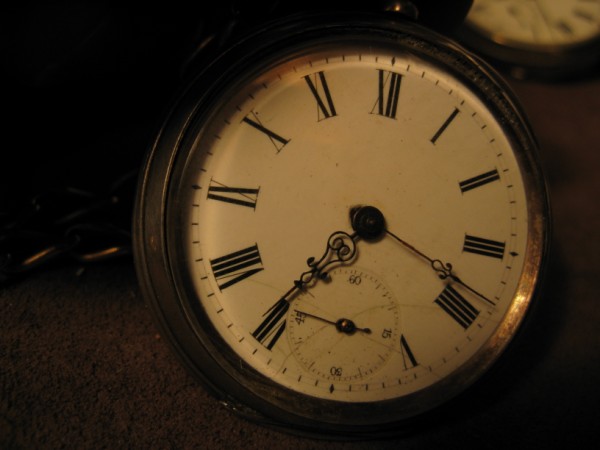

dial


December 24, 2008, 22:31
Bill Manders

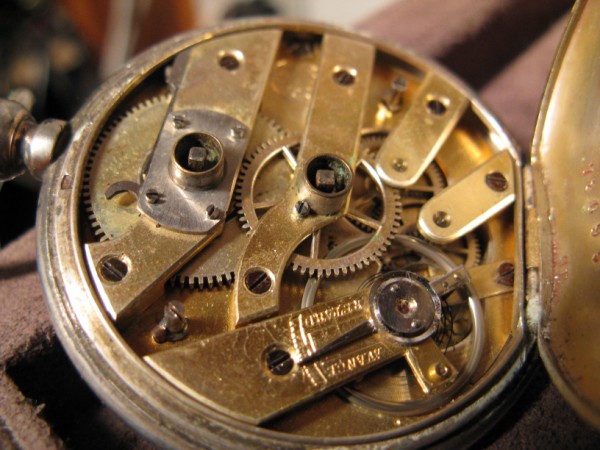

movement


December 24, 2008, 22:32
Bill Manders

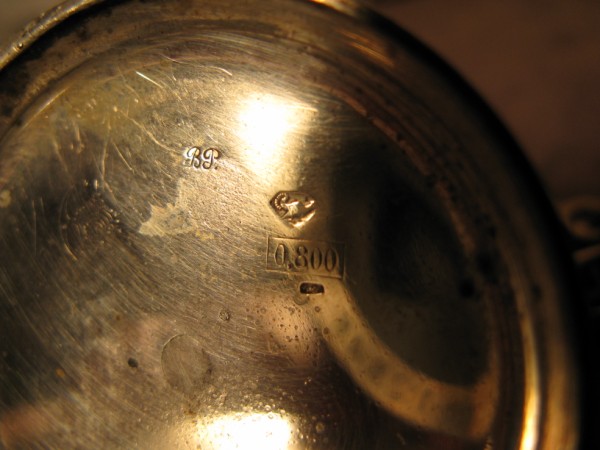

silver marks


December 24, 2008, 22:33
Bill Manders

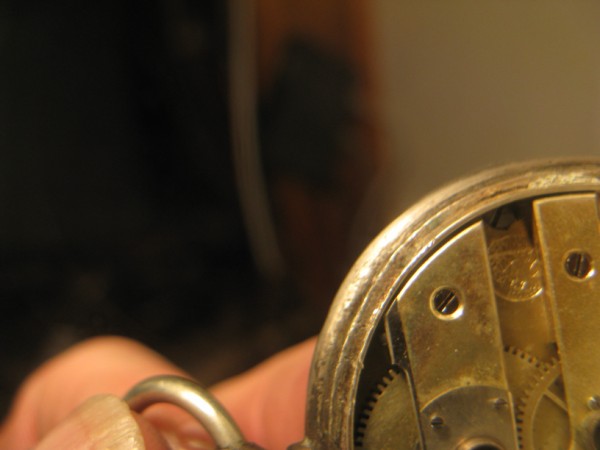

possibly a makers mark on movement
Thanks for any and all assistance.


December 25, 2008, 00:08
Tom Brown
So far I have found that the bird (grouse) is a Swiss mark, I will keep looking for your other marks.

Also is that a symbol under the 0.800 stamp, I can't tell in the photo, the Swiss used a date code similar to GB, usually a letter & number.

Tom
December 25, 2008, 00:25
Bill Manders
Tom,
It is definitely a mark, but I can't make it out even with my 10X loupe, it looks more like a figure of something rather than numbers and letters.
Thanks for the help,
Bill
December 25, 2008, 11:55
Bill Manders
I have found that the grouse which is a swiss mark, thanks to Tom, and I see the moon and crown which is a german mark. I found that that usually implies a swiss maker, and the watch was sold in Germany. I still do not know what the BP is, likely the silversmith, Looks like around the turn of the century "1900"s.
Any help with BP would be appreciated.
Thanks,
Bill
December 25, 2008, 15:55
John Woolsey
Bill, haven't had time to check yet, but there were 2x different styles for that hallmark, and think yours is the earlier, used around 1880's, which would fit the key wind/set arrangement.

Don't think it would be much earlier, as the dial feet are held by knife edge screws rather than the earlier taper pins.
By the 1900's pin set watches were becoming more common.

If you try this link, it'll take you to a site Andrea found covering Swiss hallmarks and casemaker's marks, certainly sorted one of my watches out!

http://poincon.blogspot.com/

Good luck!

Best regards

John
December 25, 2008, 19:32
Bill Manders
Thanks John,
Merry Christmas to you and yours.
I had thought it might also be the earlier grouse mark, but wasn't sure.
Also it states on the dust cover "Cylindre 4 rubies 78695 metal.
On the case back it has the hallmarks you see and the same number 78695. As I said to Tom the little mark under .800 is a mark of some kind, just can't make it out with my loupe.
There is also a mark of some sort by the bridge in the movement, but again I can't make it out. I think that for sure is a makers mark as there is what appears to be some lettering there also.
Thanks again for the info,
Bill
