Just acquired Hampden 16s.

This topic can be found at:
https://ihc185.infopop.cc/eve/forums/a/tpc/f/1086047761/m/7443941567

August 21, 2011, 14:01
Roger Stephens
Just acquired Hampden 16s.
17jewels,Grd.108 mod.5 sn/n3020591=1912 2 finger bridge pw/ps Movt marked No.108 Ateel Escape Wheel,Safety Pinon.Housed in Illinois Spartan case.Nice damaskeened .What is Ateel Escape wheel? Nice watch and a good runner. Roger

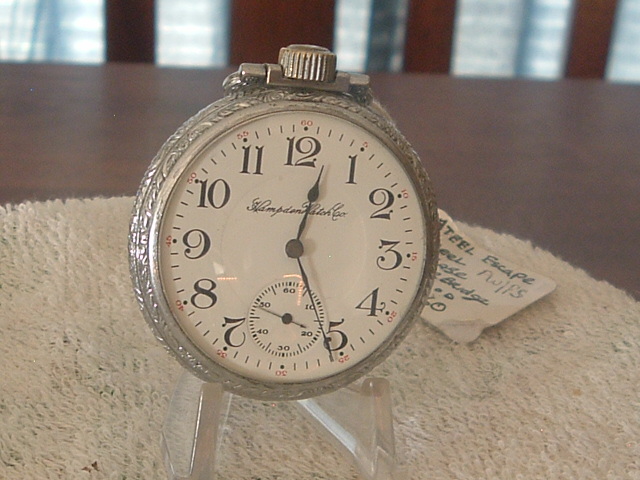

bezel on

August 21, 2011, 14:02
Roger Stephens

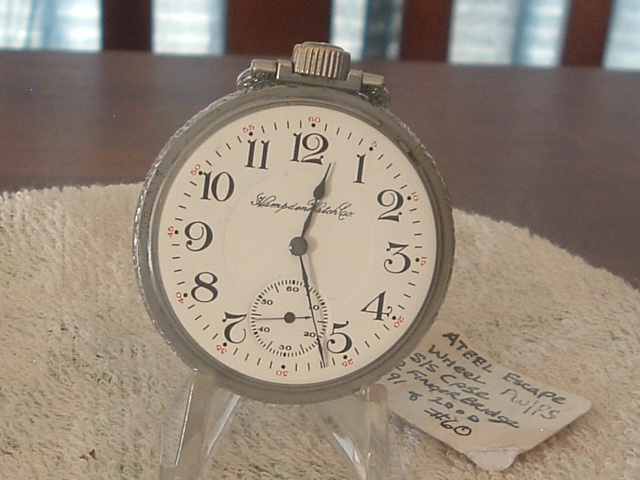

bezel off

bezel off 1

August 21, 2011, 14:03
Roger Stephens

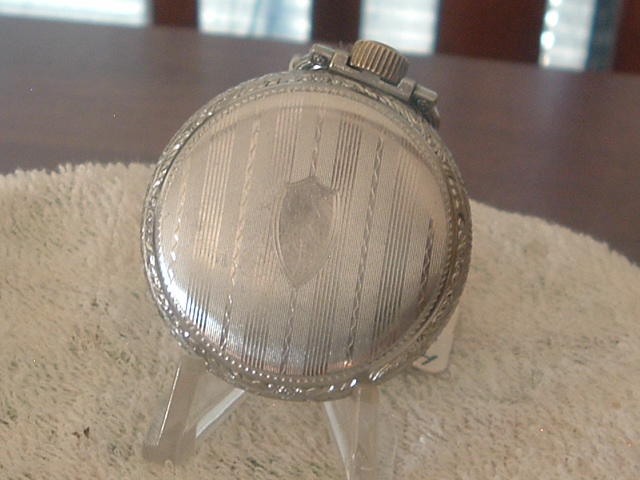

back cover

back cover 1

August 21, 2011, 14:04
Roger Stephens

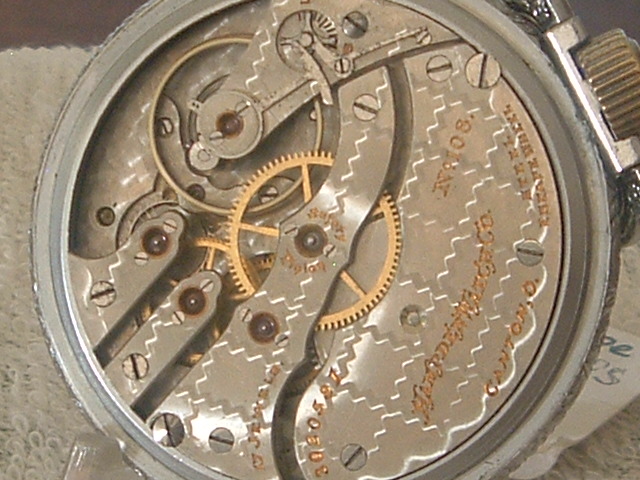

movt1

movt

August 21, 2011, 14:05
Roger Stephens

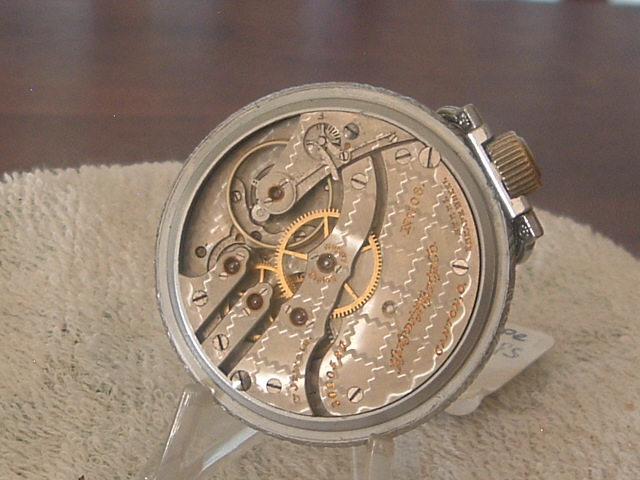

movt 2

movt

August 21, 2011, 14:26
Bill Manders
That looks like a great looking watch, and it is no doubt very RARE, because it likely is the only one known with this Ateel escape wheel.
Nice clean looking watch, nice pick.
Bill
August 21, 2011, 14:42
William D. White
Steel Escape Wheel. Harder and more precise than a brass escape wheels used in lower grade watches.

William


August 21, 2011, 14:47
Buster Beck

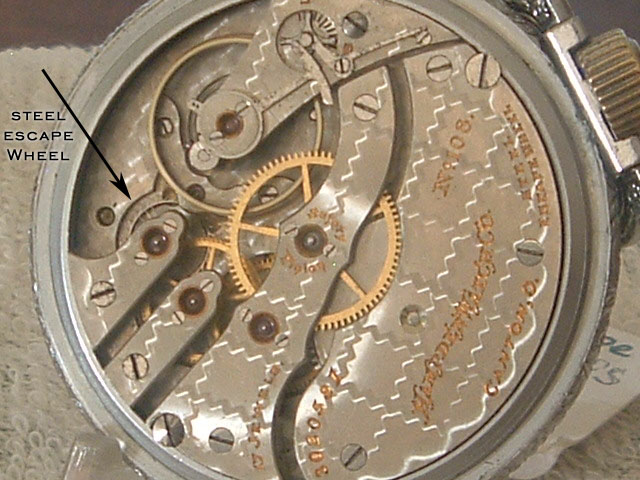

Here's your steel escapement wheel Roger. It's the first little gear in the gear train with the white arrow.

Some were brass before RR standards started required a steel escapement wheel. Then most all the manufacturers went to the steel wheel on all their lines of watches.

regards,
bb
[see attachment]


August 21, 2011, 14:52
Buster Beck

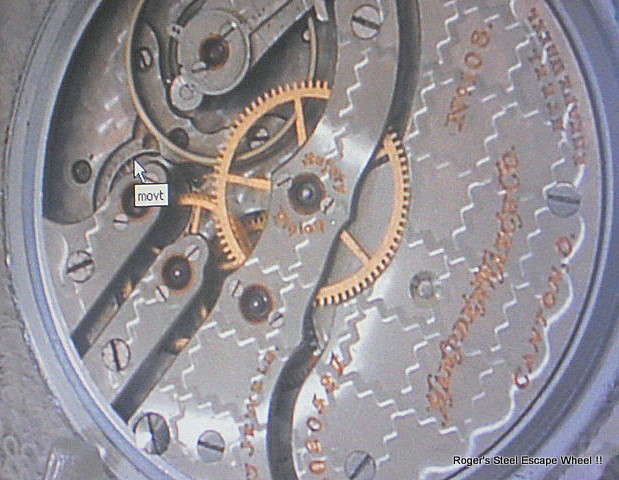

William & I have it pinned & pointed down & out Big Grin

I was posting while William was already eating dinner Eek

regards,
bb
August 21, 2011, 15:23
Roger Stephens
Thank you guys.I knew it had a steel escape wheel but I did't or don't know what ateel is.Perhaps a play on words by Hampden or a mis-spelling?
