Internet Horology Club 185
PROPER HAMILTON DIAL?

This topic can be found at:
https://ihc185.infopop.cc/eve/forums/a/tpc/f/1086047761/m/504103043

September 18, 2010, 23:21
Larry Lamphier
PROPER HAMILTON DIAL?

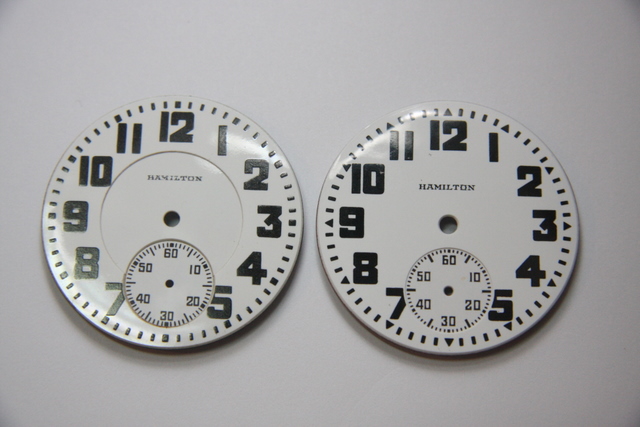

Can anyone tell me if the dial on the right is common. I don't remember seeing one with the minute markers pointing out like that.

I have seen them on the Illinois, and the Elgins.


September 18, 2010, 23:22
Larry Lamphier

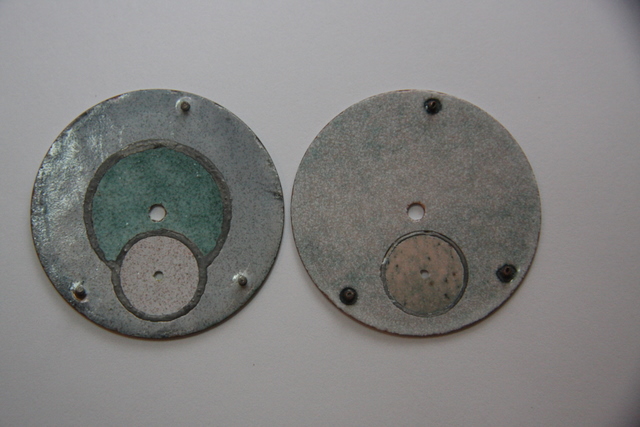

The back of them.


September 18, 2010, 23:23
Larry Lamphier
Thank you for your help.

Regards,
Larry
September 19, 2010, 00:18
Buster Beck
Lawrence,
After Hamilton assumed Illinois in 1928 many changes came about. In the early to mid 30's, some of the Hamilton Heavy Gothic dials were tried with the Illinois style of "Arrows Out" which formerly was seen on the Sangamo Special dials.

Today when we run across one of these "variant" dials,they just really stand out. Some put a premium on these dials, as they well should with any variant Big Grin

Many changes, were implemented in the "new" Hamilton factory from 1929-1939 that were strongly influenced by the then defunct Illinois company Eek And your dial is one of them Smile

These are nice finds today, congratz Smile

regards,
bb
September 19, 2010, 00:31
Larry Lamphier
Thank you bb! Smile

I had a feeling but I get into trouble somtimes with that FEELING! Big Grin

So I wanted to be sure!

Regards,
Larry
