Internet Horology Club 185
Rockford movement

This topic can be found at:
https://ihc185.infopop.cc/eve/forums/a/tpc/f/1086047761/m/12010152

February 17, 2009, 18:48
Cecil McGee
Rockford movement

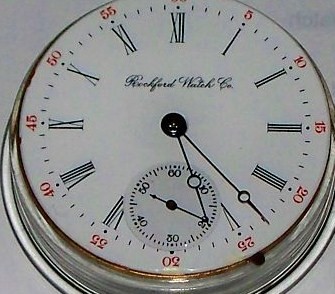

Just picked this up from Ebay. I have been looking for one of these exposed escape models for a while,to add to my Rockford collection. I have a very nice gold filled hunting case just waiting for one like this


February 17, 2009, 18:48
Cecil McGee

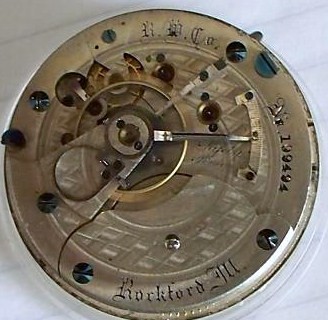

The movement


February 18, 2009, 14:34
David Abbe
I appreciate this a practical attempt Rockford did to make a more serviceable full plate type movement where the escape wheel Jewel is on a separate plate so that that the escape wheel can be assembled after safely getting the pallet arm into it's jewels. This reduced the possibility of messing up the pallet Jewels by trying to force them down on top of one of the escape wheel "feet".
February 18, 2009, 17:17
Jerry Freedman
I have one of these, and was surprised to find a right angle lever in it. I had not realized that any American company used the Enlish style right angle layout.
February 19, 2009, 16:55
Cecil McGee
That's funny,I always thought it was just a gimmick,for the curious owner to see the wheels.

Also,I think that right angle thing is pretty common in American watches. I can't remember much lately or I could name some of the ones that I have had apart,but some Walthams,and maybe Illinois for sure.
